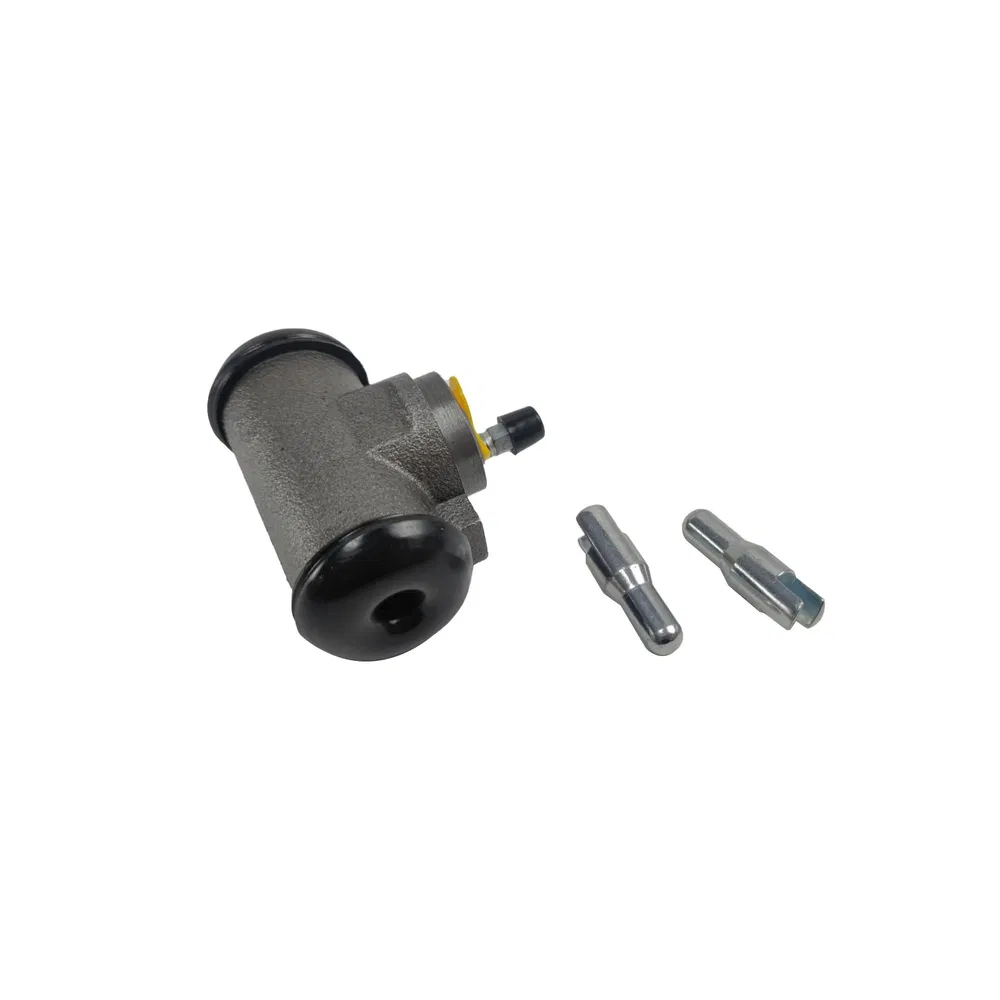

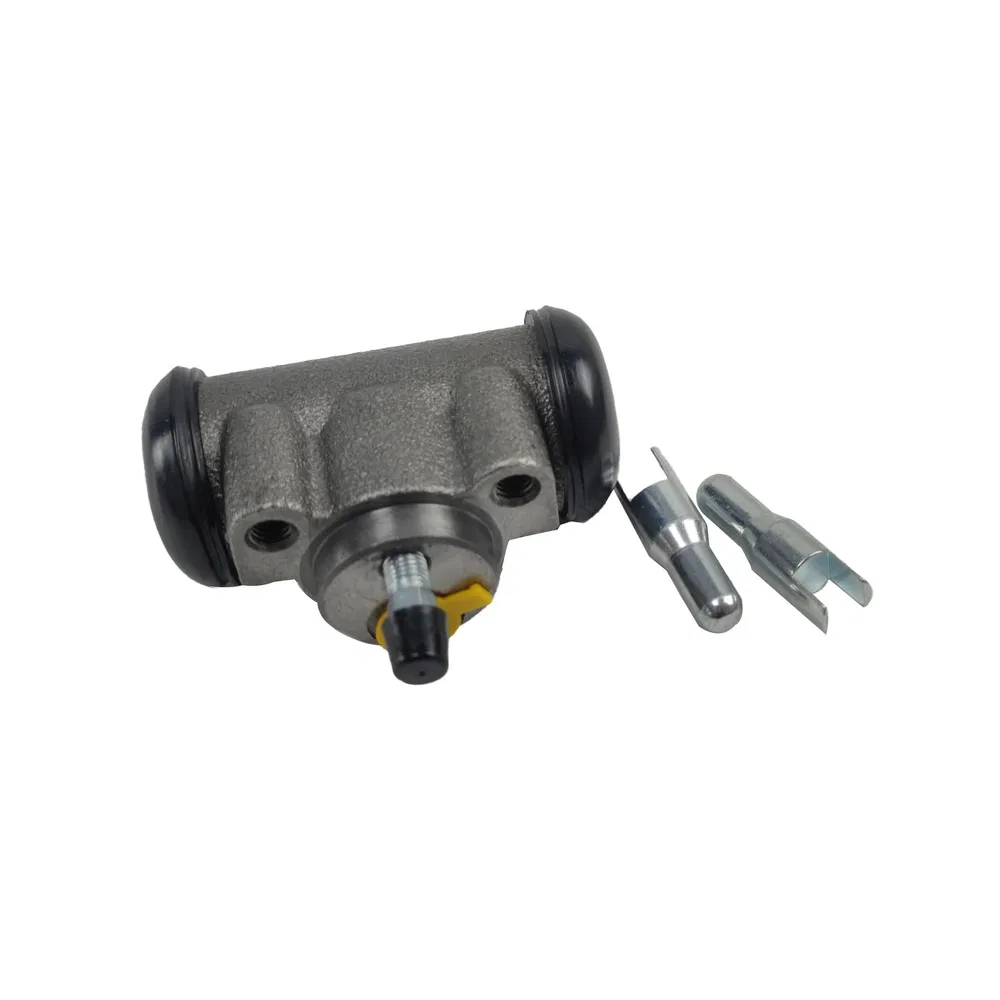

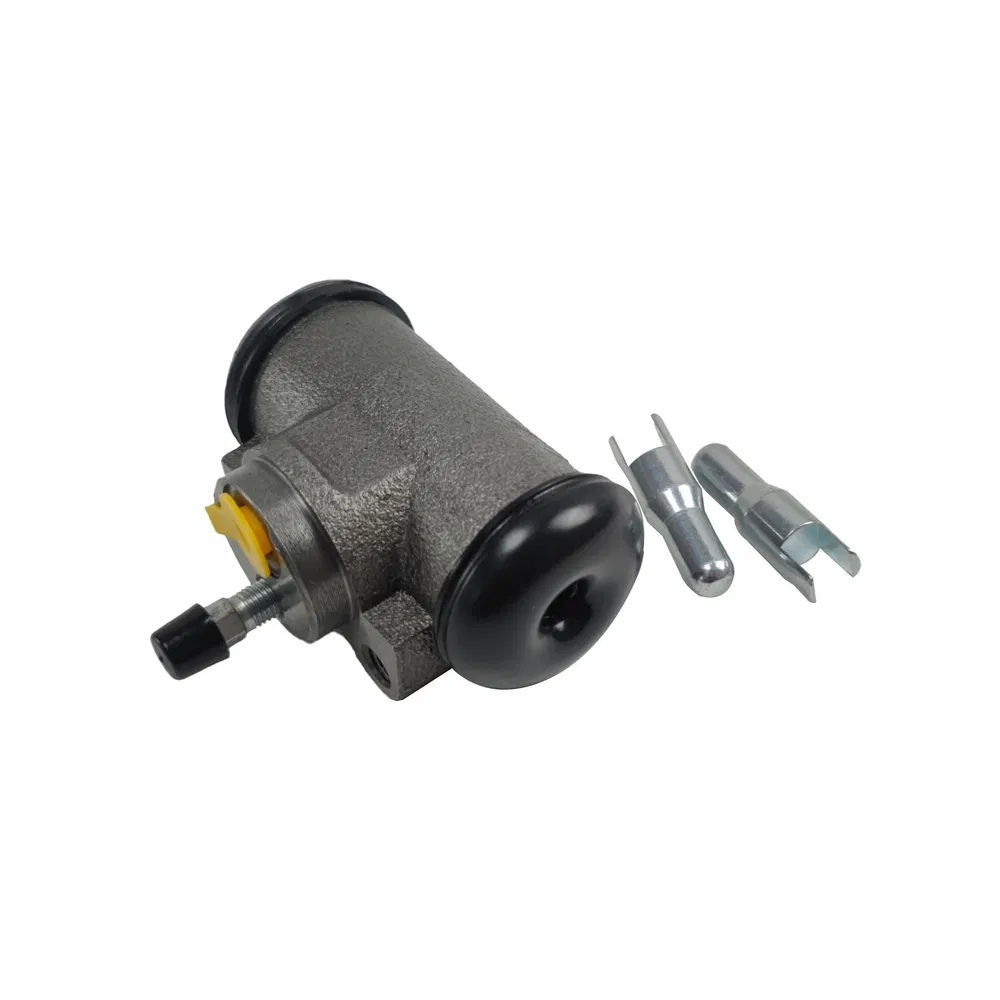

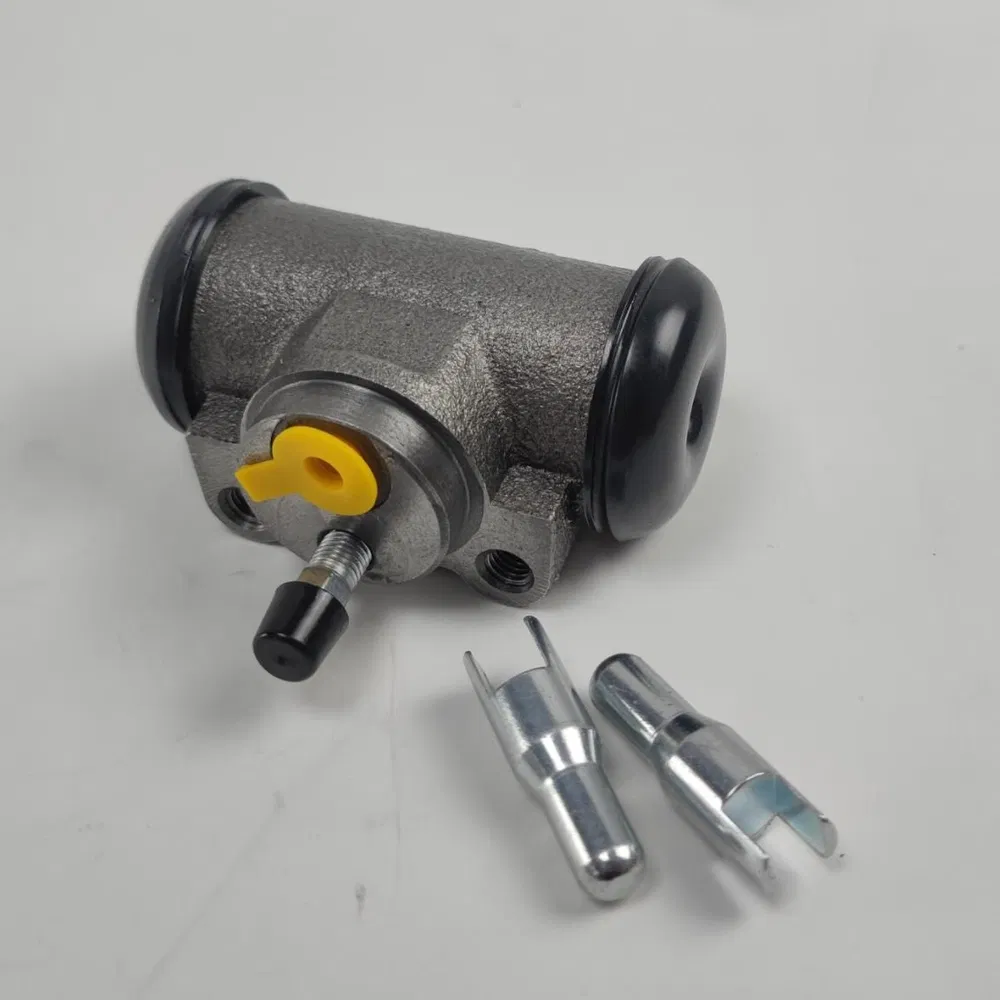

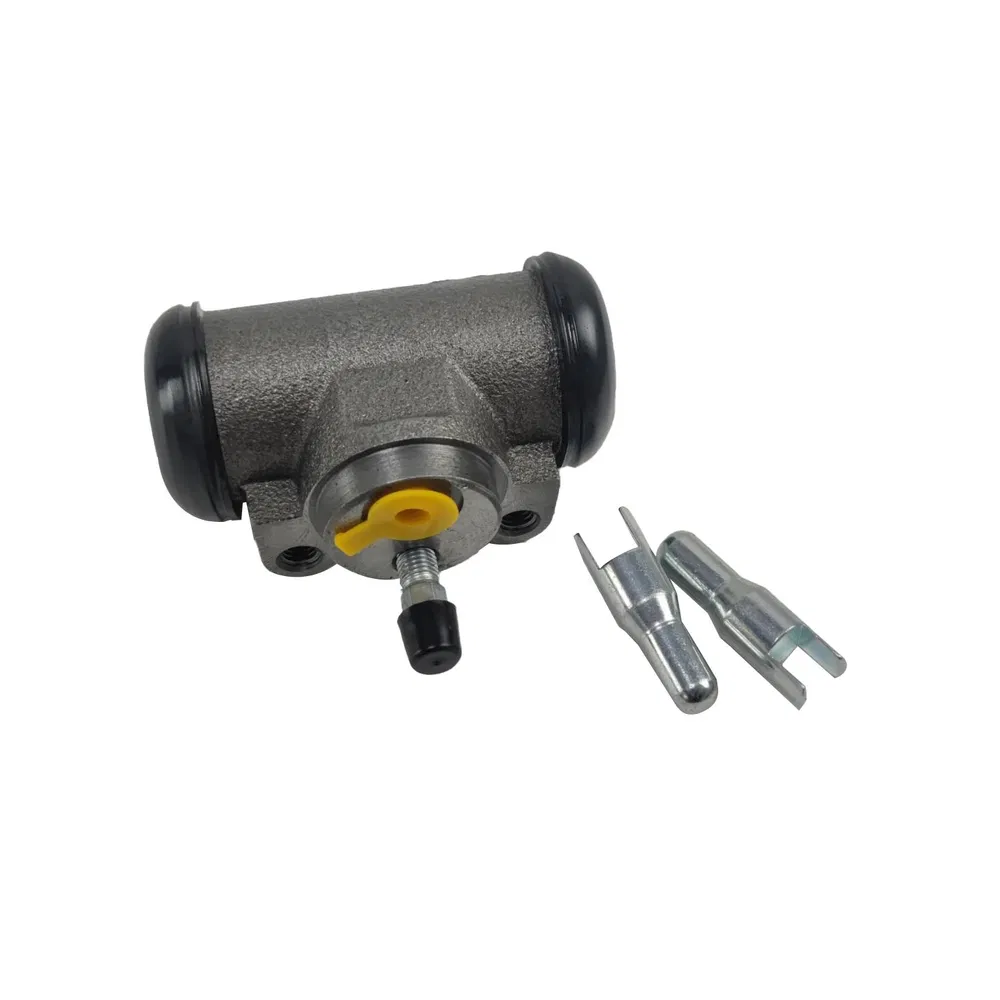

Affordable Forklift Brake Wheel Cylinder for Maintenance Needs

Customization:	Available
After-sales Service:	Not Available
Warranty:	Not Available

📋 Basic Information

Model NO.	SY NO. 1742-1
Material	Carbon Steel, Steel
Surface Treatment	Baking Paint
Type	Brake Cylinders
Position	Front
Classification	Disc
Main Market	Global Distribution
Weight	0.77kg
Package Size	10.00cm * 10.00cm * 10.00cm

⚙️ Product Description

BRAKE CYLINDER FUNCTION

The main function of the brake cylinder is to decelerate and stop the forklift by pushing the brake pads. When the driver steps on the brake pedal, the brake master cylinder generates thrust and distributes the hydraulic oil pressure to each cylinder. The piston inside the cylinder begins to move under the action of the hydraulic pressure, thereby pushing the brake pads to rub against the brake drum to achieve the braking effect.

WORKING PRINCIPLE

After stepping on the brake, the master cylinder generates thrust to press the hydraulic oil to the cylinder, and the piston inside the cylinder begins to move under the hydraulic pressure to push the brake pads. The oil brake is composed of a brake master cylinder and a brake oil storage tank. It is connected to the brake pedal at one end and the brake oil pipe at the other end.

When the brake is stepped on, the oil outlet opens, and the oil inlet closes. Under the pressure of the pump piston, the brake oil pipe is squeezed out of the oil pipe and flows to each brake cylinder for braking. When the brake pedal is released, the oil inlet opens so that the brake oil will flow back from each brake cylinder to the master cylinder.

📊 Product Parameters

Code	LB02-C004G
Name	BRAKE WHEEL CYLINDER
Specification Model	SY NO.1742-1
Gross Weight	1.000kg

🔍 Technical Features

📍 HYDRAULIC TRANSMISSION

The brake cylinder works through a hydraulic system. When the driver presses the brake pedal, the brake fluid is transferred from the main pump to the cylinder, pushing the piston inside to generate braking force. This method ensures fast response and uniform force transmission.

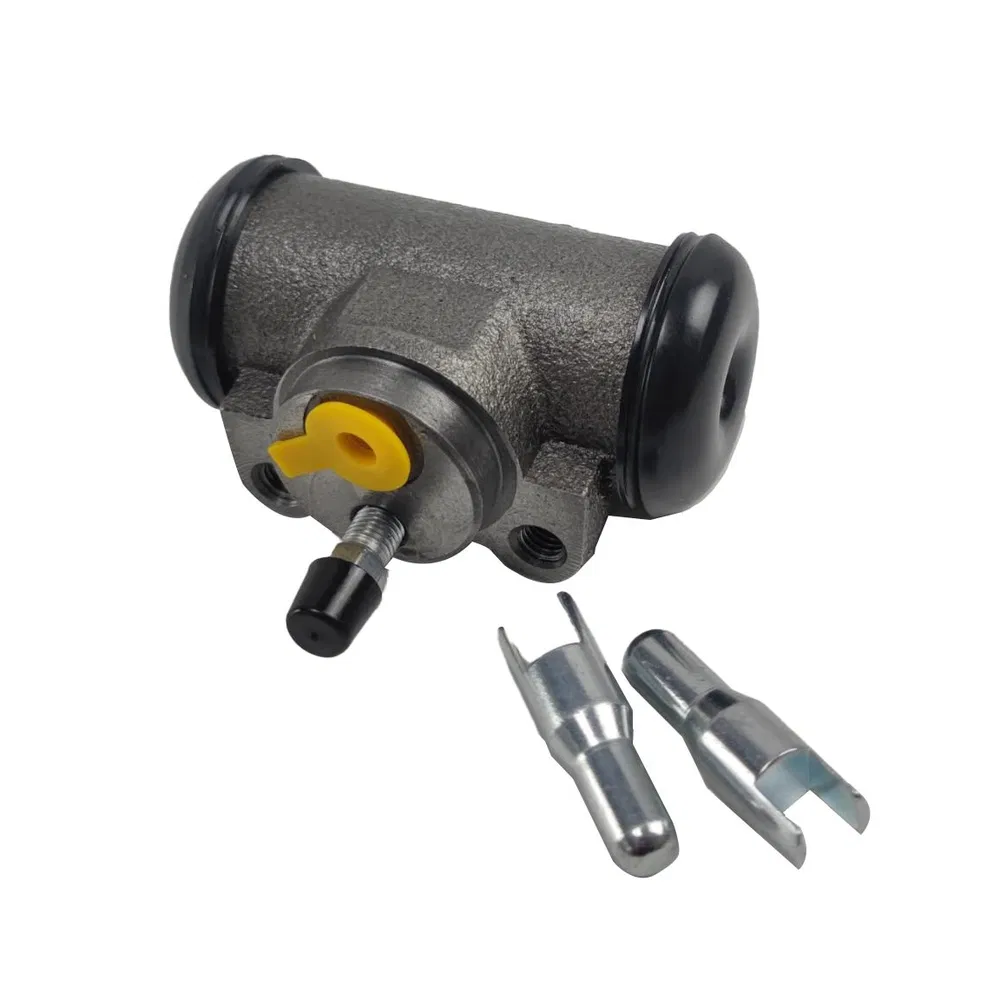

📍 COMPACT STRUCTURE

Designed to be extremely compact to fit the limited space inside the wheel. Made of aluminum alloy or cast iron, it ensures high strength while minimizing overall weight for better performance.

📍 PISTON DESIGN

Contains precision-engineered pistons. The multi-piston design in high-performance models provides stronger braking force and superior heat dissipation during heavy operation.

📍 RESISTANCE & MAINTENANCE

Built for high temperature and corrosion resistance. The modular structure allows for easy maintenance; if oil leakage occurs, the cylinder can be replaced individually without overhauling the entire system.

❓ Frequently Asked Questions

Q1: What are your standard packing terms?

Generally, we pack our goods in neutral white boxes and brown cartons. Customized branded packaging is available upon proper authorization.

Q2: What are your typical payment terms?

Our standard terms are T/T 30% as a deposit, with the remaining 70% paid before delivery. We provide photos of products and packages before final payment.

Q3: What is the expected delivery time?

Usually, it takes 1 to 10 days after receiving your advance payment. The specific time depends on the specific items and the quantity of your order.

Q4: Can you produce items based on samples?

Yes, we can produce according to your physical samples or technical drawings. We also have the capability to manufacture molds and fixtures.

Q5: What is your policy regarding samples?

We can provide samples if parts are in stock, but customers are responsible for the sample cost and courier fees.

Q6: Do you test all products before they are shipped?

Yes, we conduct a 100% quality and performance test on all goods before they are dispatched to ensure reliability.
