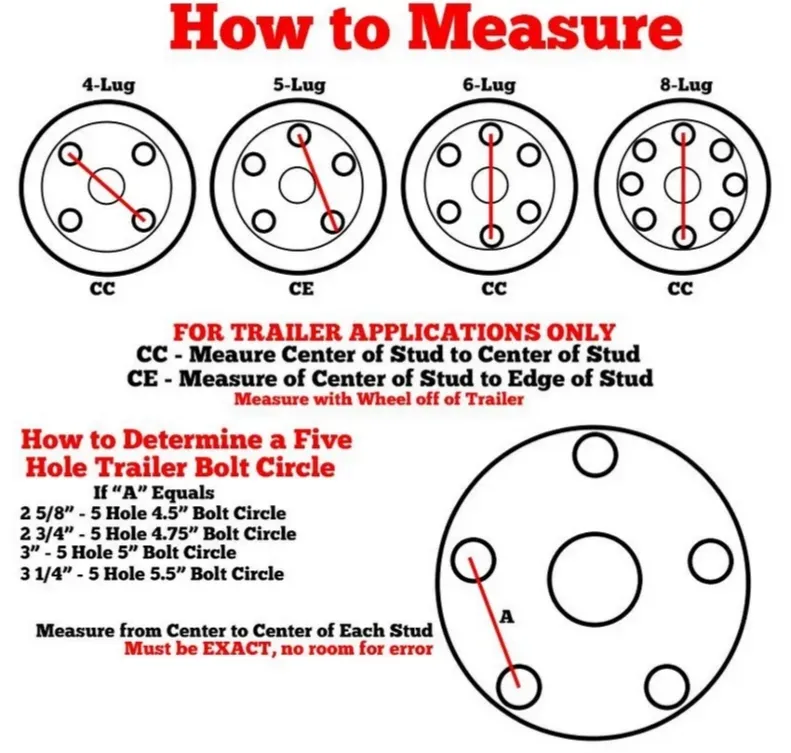

For Even Number of Bolt Holes: Measure from the center of one bolt hole to the center of the hole directly across from it. (e.g., 8 on 6-1/2" means 8 holes with 6-1/2" diameter).
For Odd Number of Bolt Holes: Measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first.
Quick Reference:
• Distance 2-5/8" = 5 on 4-1/2" Pattern
• Distance 2-3/4" = 5 on 4-3/4" Pattern
• Distance 3" = 5 on 5" Pattern
• Distance 3-1/4" = 5 on 5-1/2" Pattern

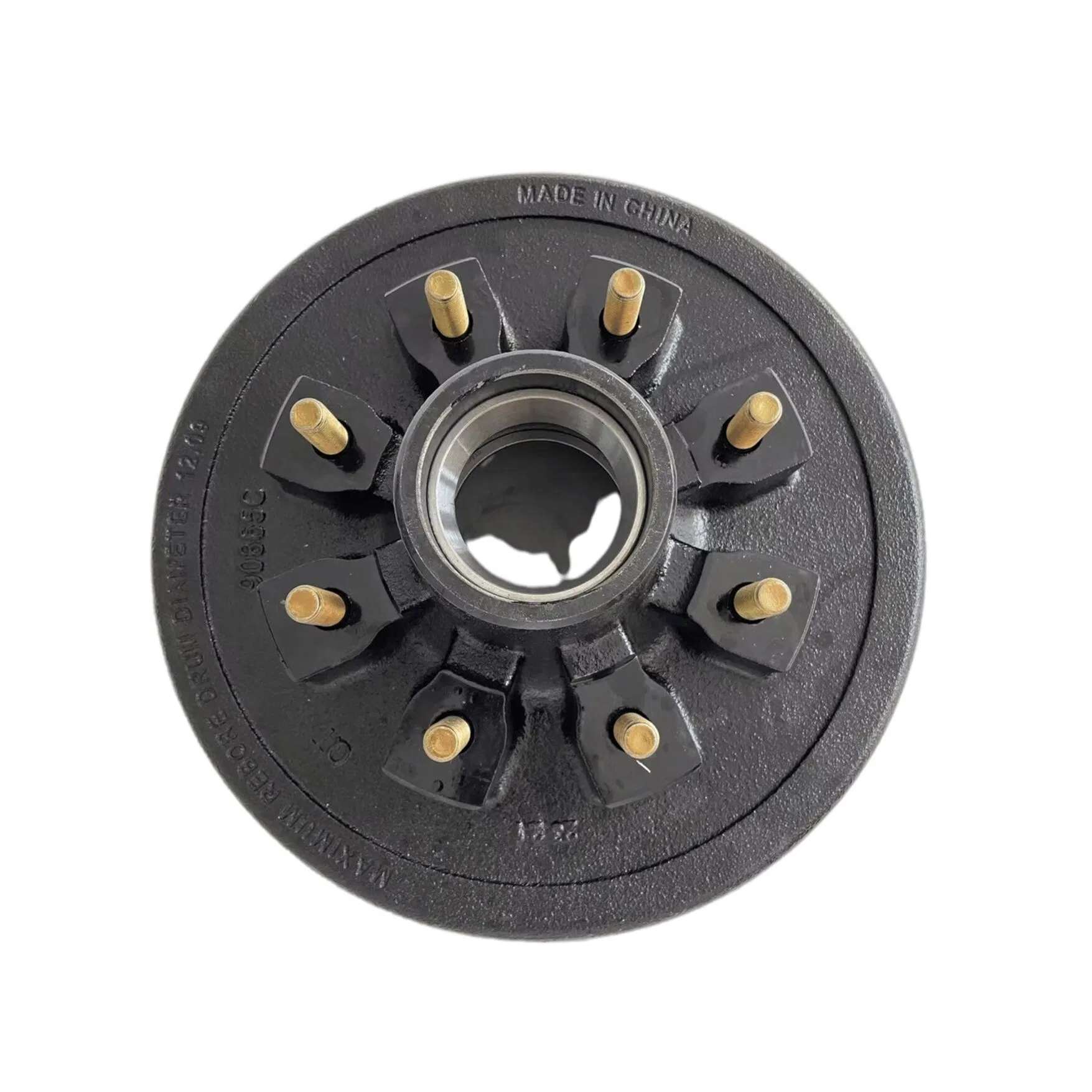

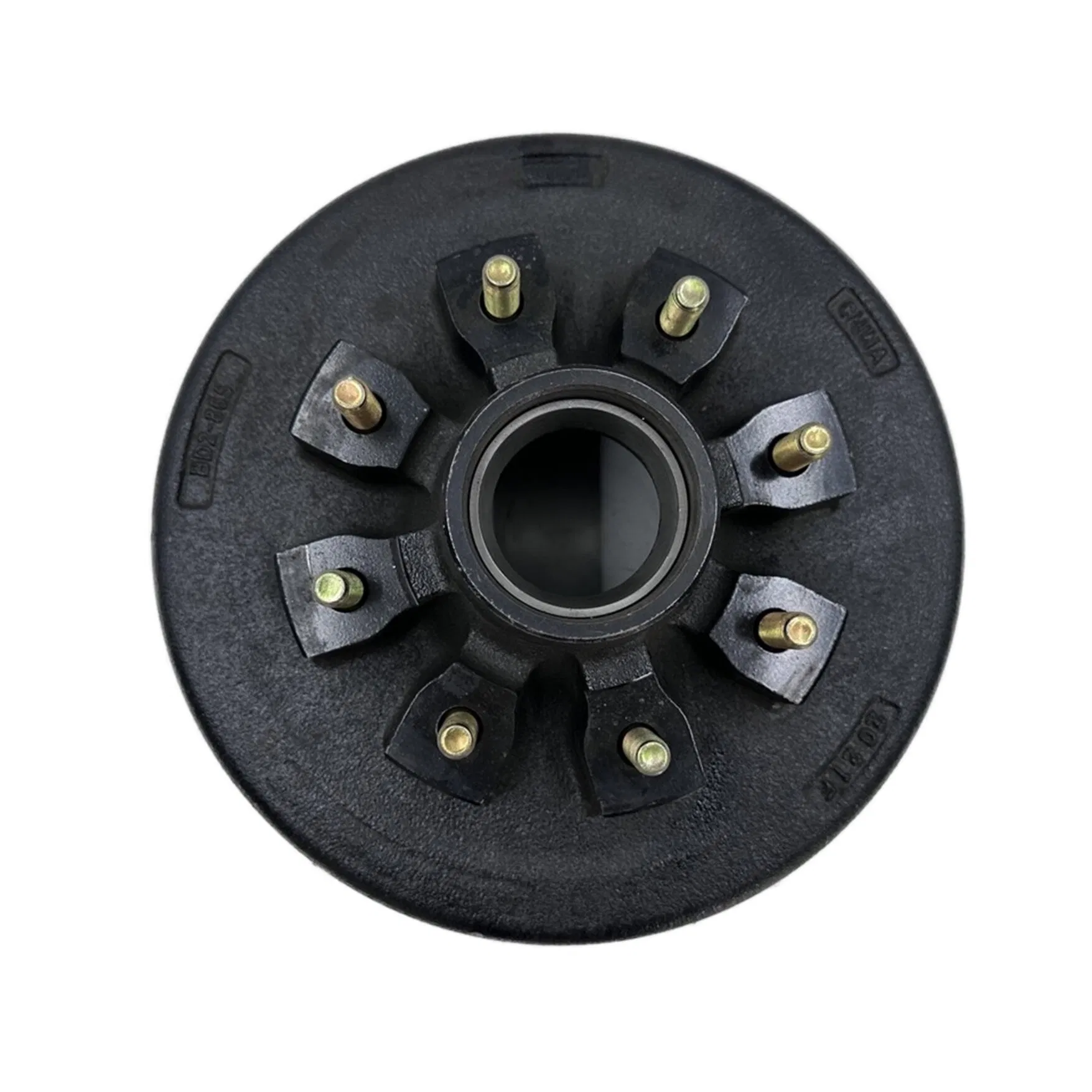

| Model No. | PTS14200008-BK | Position | Rear |
| Drum Size | 12" X 2" | Bolt Pattern | 8 on 6-1/2" |
| Capacity | 7000 lbs | Wheel Studs | 1/2"-20 |
| Inner Race | 25520 | Outer Race | 14276 |
| Process | Casting + Machining | Main Market | North America, Oceania |
