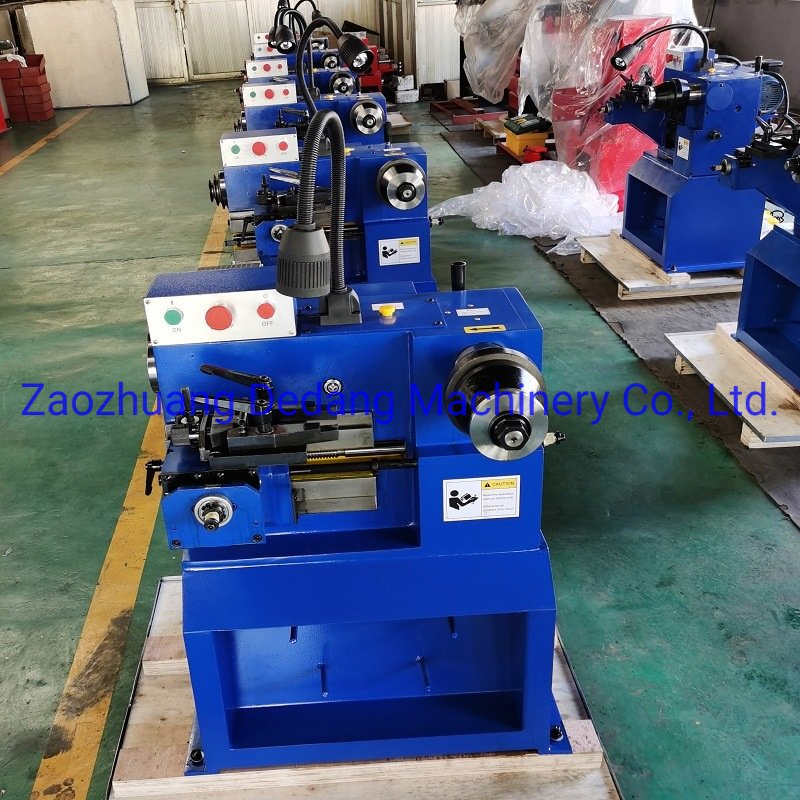

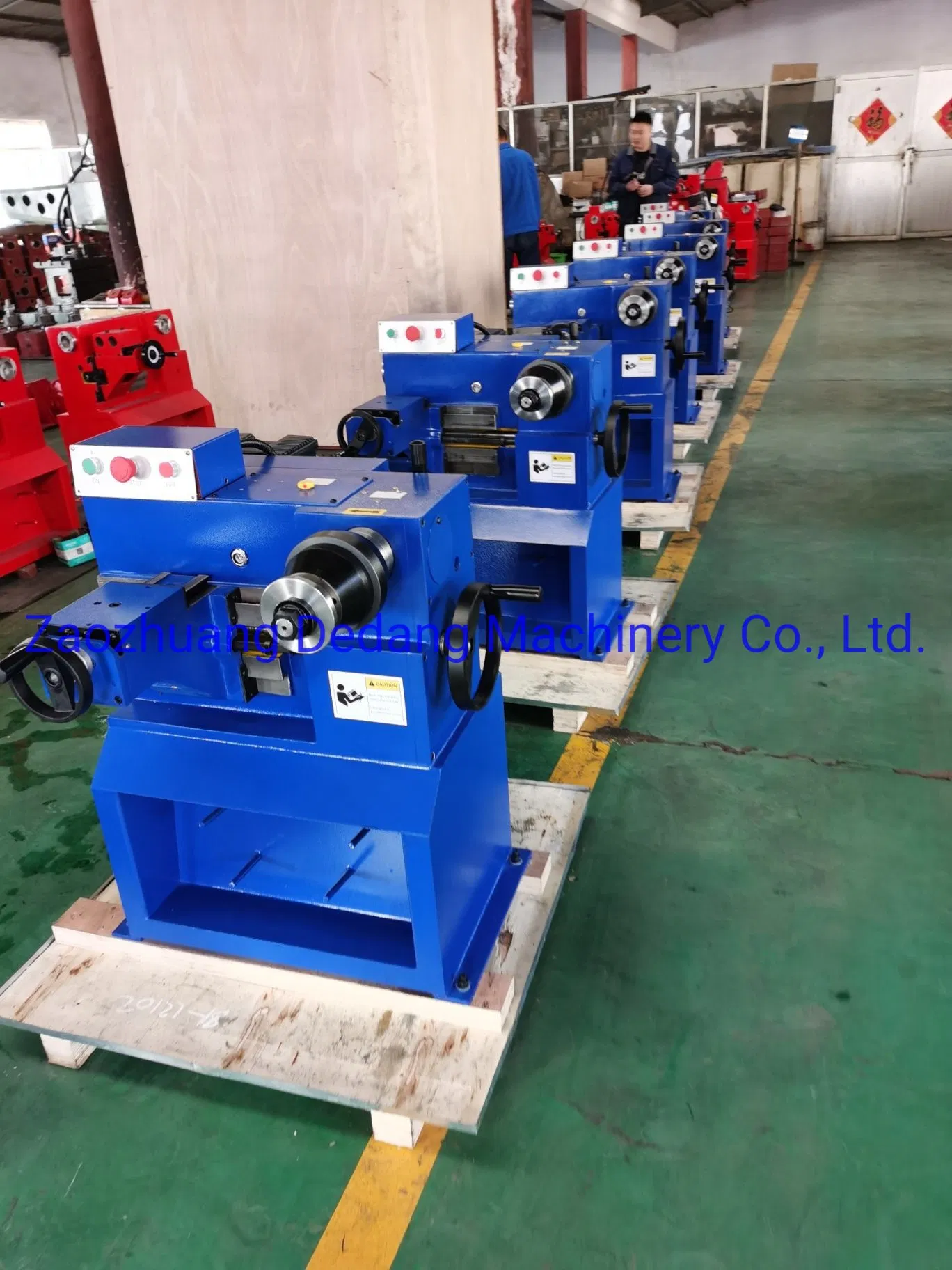

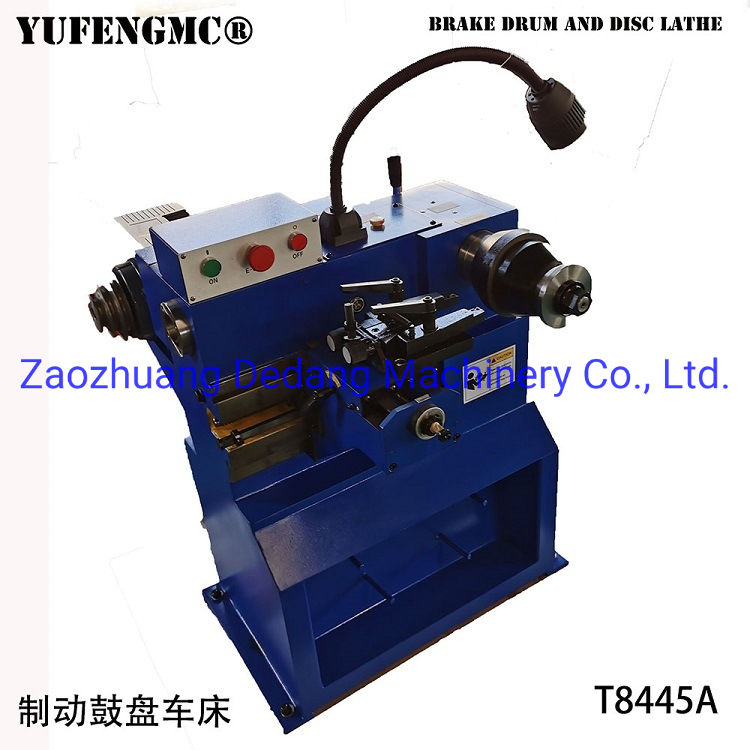

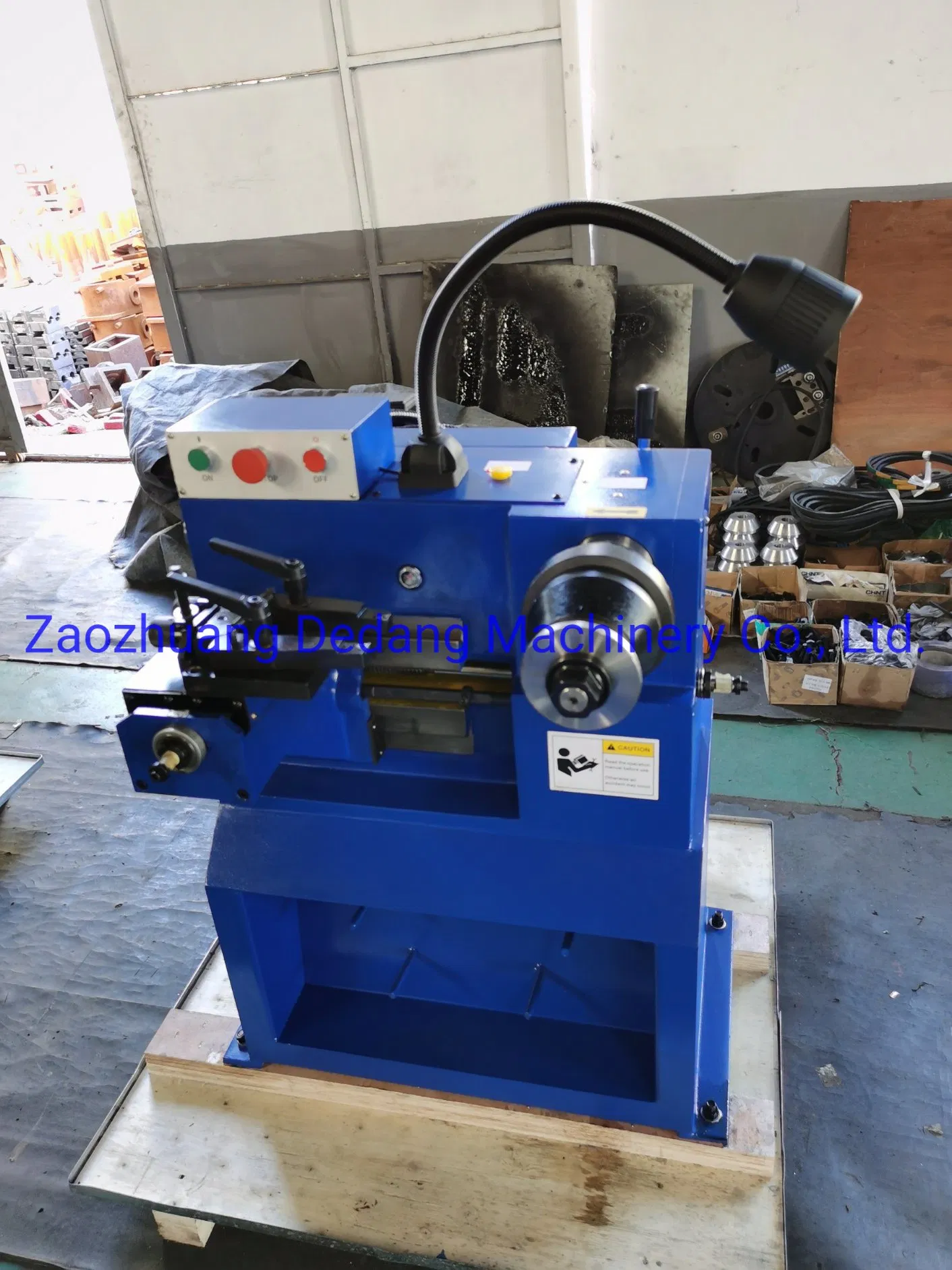

Brake Drum Disc Lathe Two Spindle Brake Disc Brake Drum Cutting Dt8445A
Brake Drum Disc Lathe Two Spindle Brake Disc Brake Drum Cutting Dt8445A
Brake Drum Disc Lathe Two Spindle Brake Disc Brake Drum Cutting Dt8445A
Brake Drum Disc Lathe Two Spindle Brake Disc Brake Drum Cutting Dt8445A
Brake Drum Disc Lathe Two Spindle Brake Disc Brake Drum Cutting Dt8445A
1 / 5
Brake Drum Disc Lathe Two Spindle Brake Disc Brake Drum Cutting Dt8445A
Brake Drum Disc Lathe Two Spindle Brake Disc Brake Drum Cutting Dt8445A
Brake Drum Disc Lathe Two Spindle Brake Disc Brake Drum Cutting Dt8445A
Brake Drum Disc Lathe Two Spindle Brake Disc Brake Drum Cutting Dt8445A
Brake Drum Disc Lathe Two Spindle Brake Disc Brake Drum Cutting Dt8445A

Brake Drum Disc Lathe Two Spindle Brake Disc Brake Drum Cutting Dt8445A

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
T8445A
Specification
900*930*1100MM
HS Code
8458190000
Capacity
500 unit/Year

Product Visuals

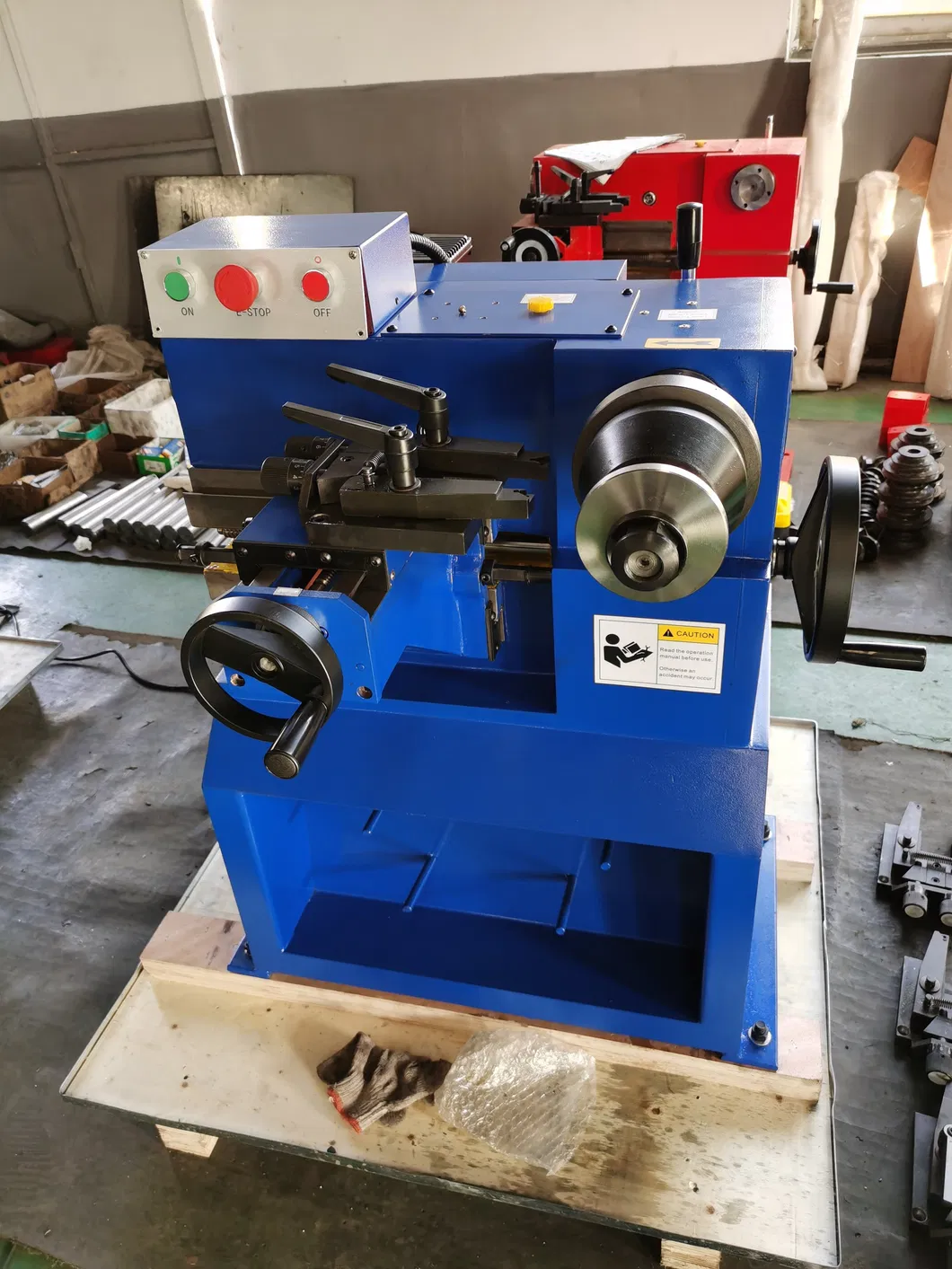

Brake Drum Disc Lathe Display 1

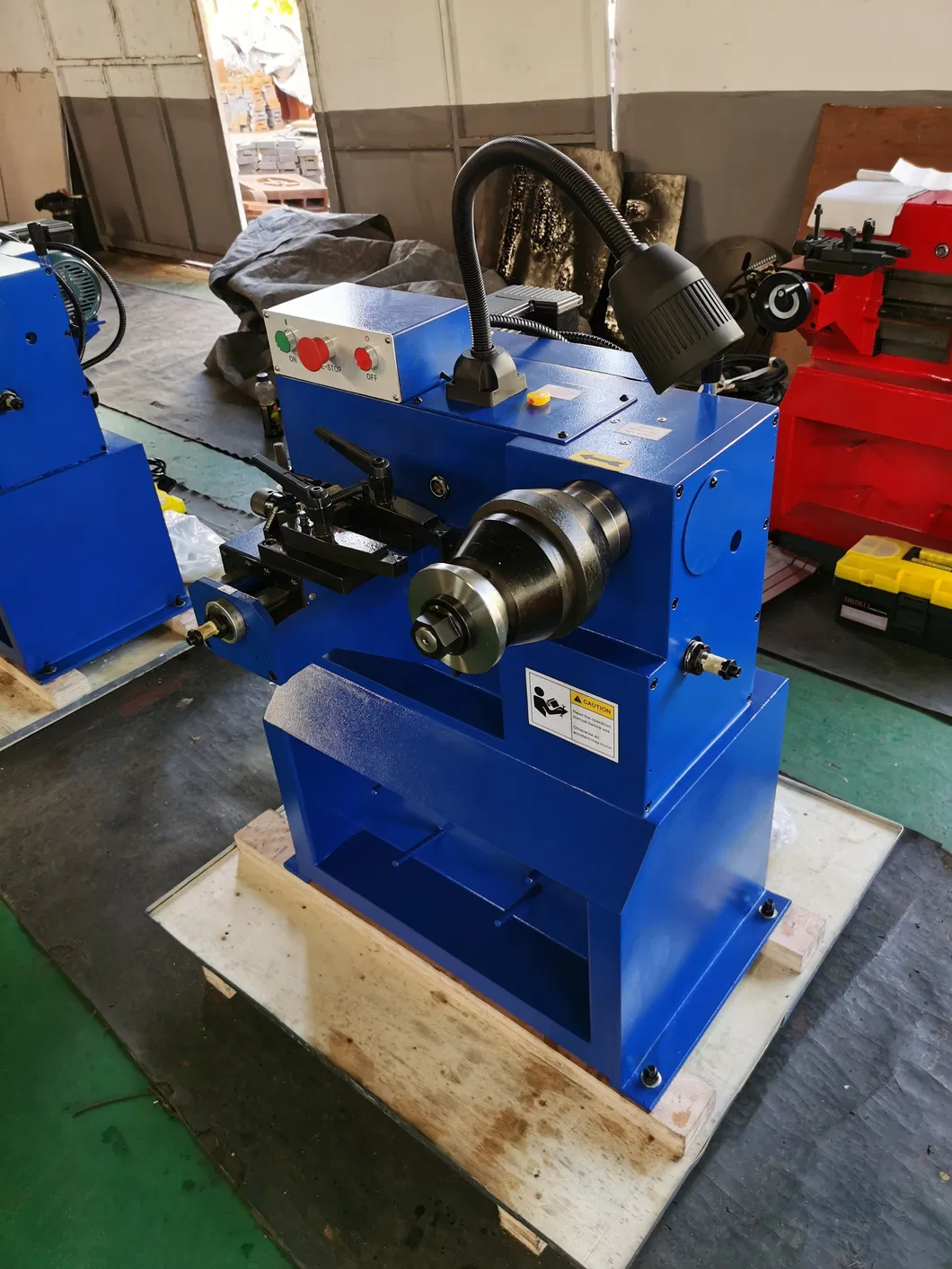

Brake Drum Disc Lathe Display 2

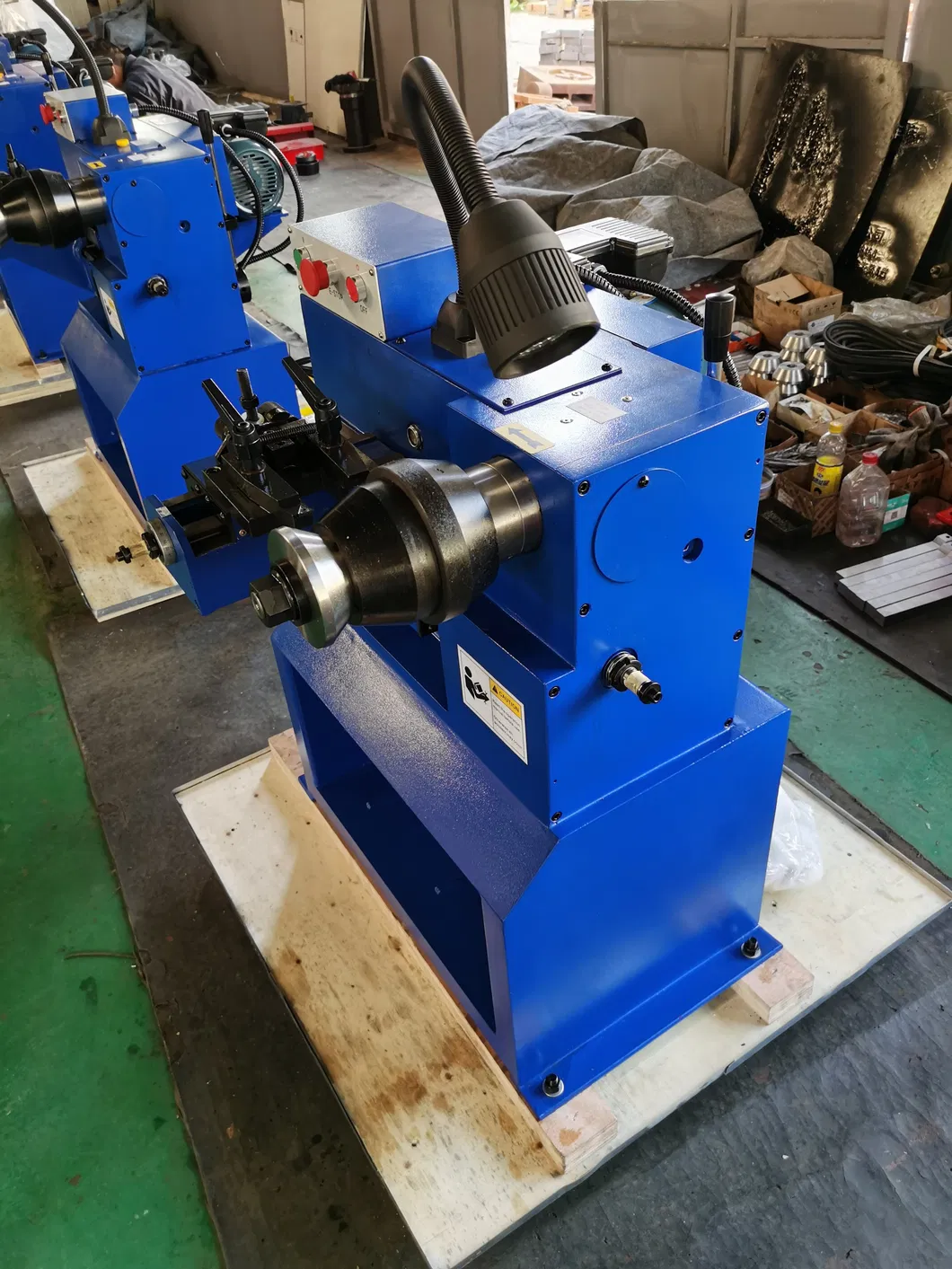

Brake Drum Disc Lathe Display 3
Brake Drum Disc Lathe Display 4
Brake Drum Disc Lathe Display 5

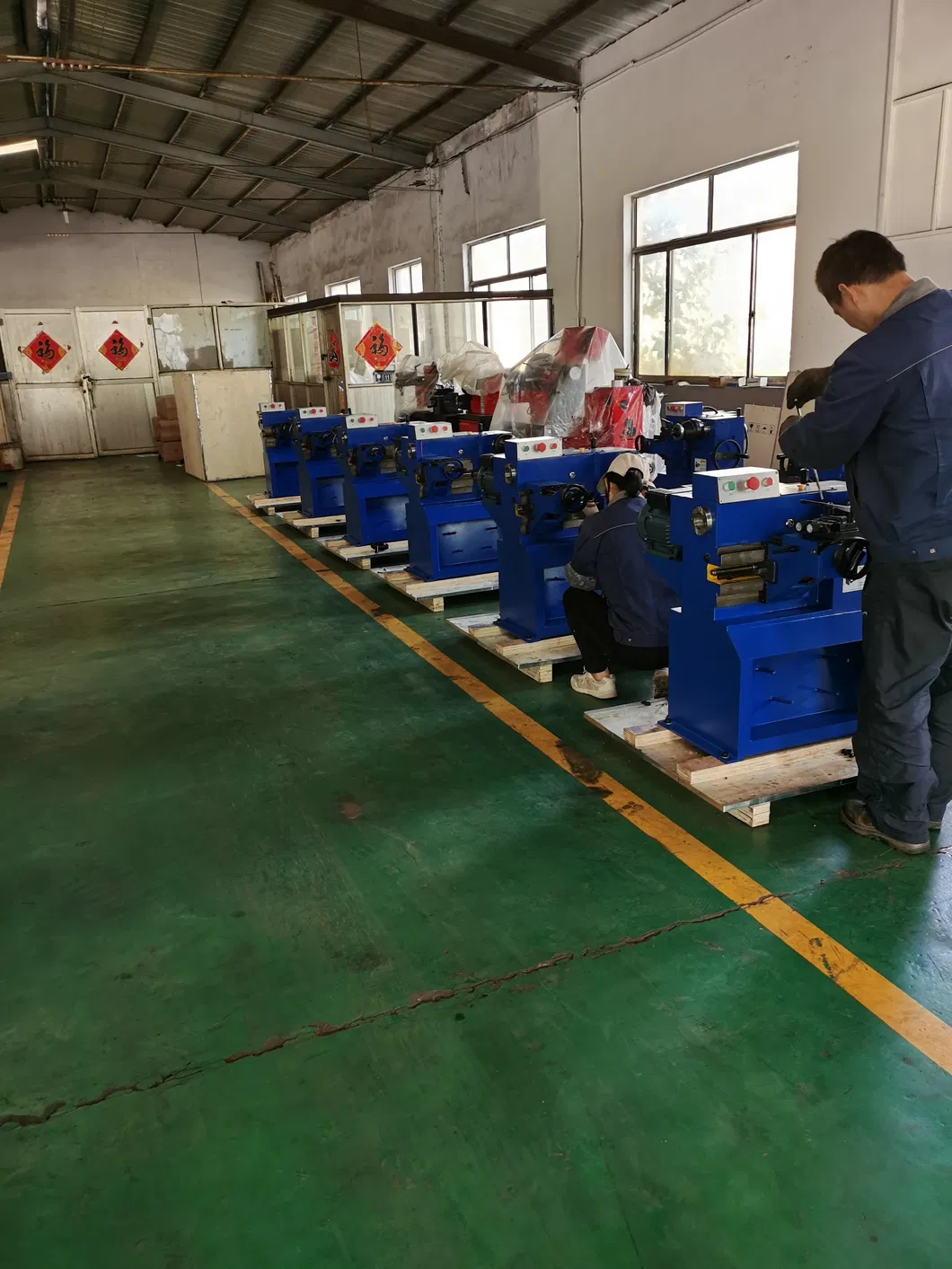

Brake Drum Disc Lathe Display 6

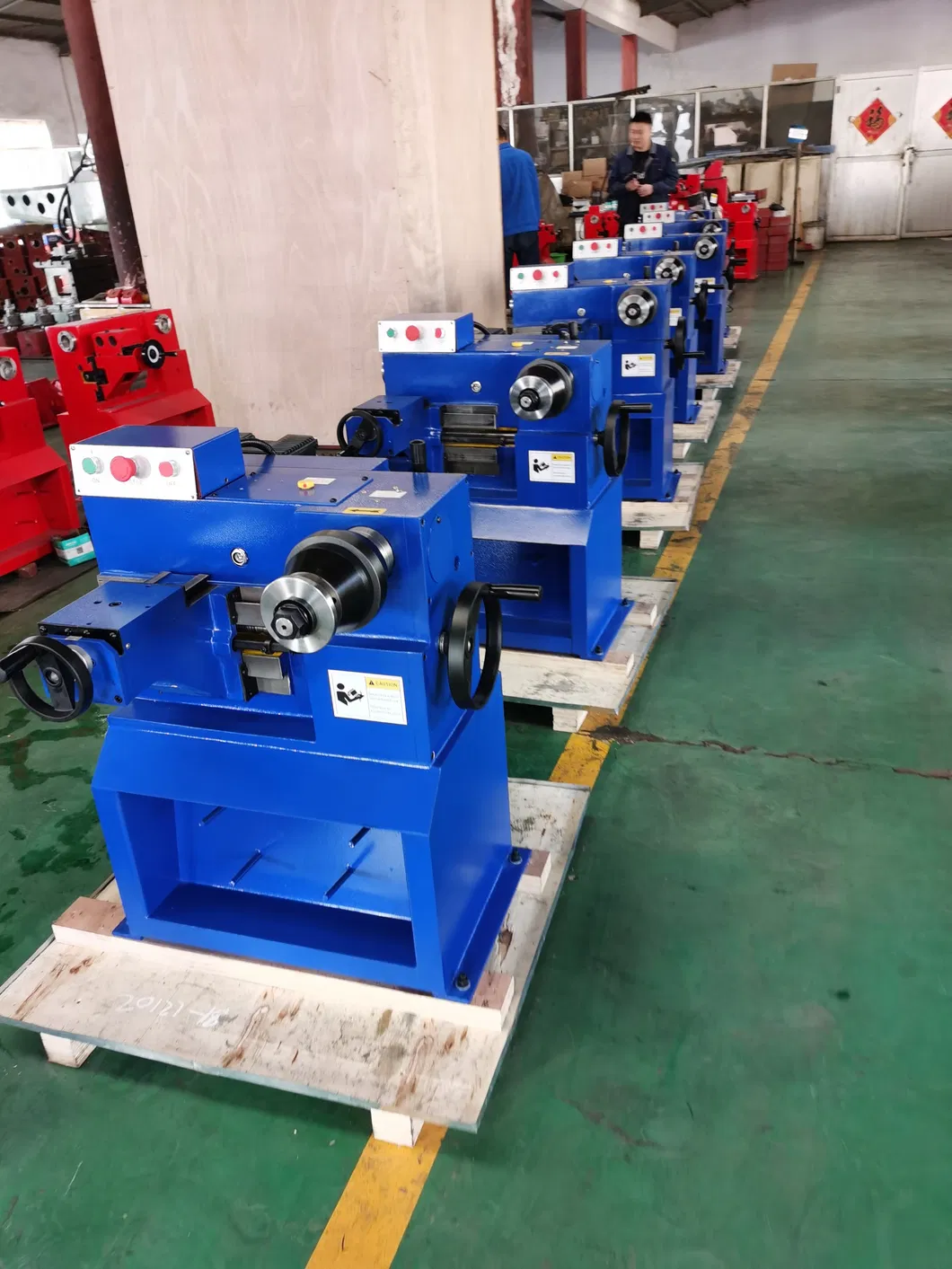

Brake Drum Disc Lathe Display 7

Technical Parameters

Parameter T8445 / T8445A T8465
Drum Diameter 180-450MM 180-650MM
Disc Diameter 102-400MM 102-520MM
Cutting Travel 190MM 265MM
Spindle Speed 20, 52, 85 RPM 20, 52, 85 RPM
Feed Speed 0.16MM 0.16MM
Main Motor 1.1KW 1.1KW
Machine Size 1100*870*1000MM 1580*1020*1050MM / 1880*1020*1970MM
Packing Size 900*930*1100MM 1020*1065*1100MM / 1420*1065*1100MM
G.Weight / N.W 350/290KG 530/470KG

Key Features

"Replacement adapter" system eliminates the need for traditional bell clips and cones.
Continuously variable spindle and cross feed speed set for fast rough and fine finishing.

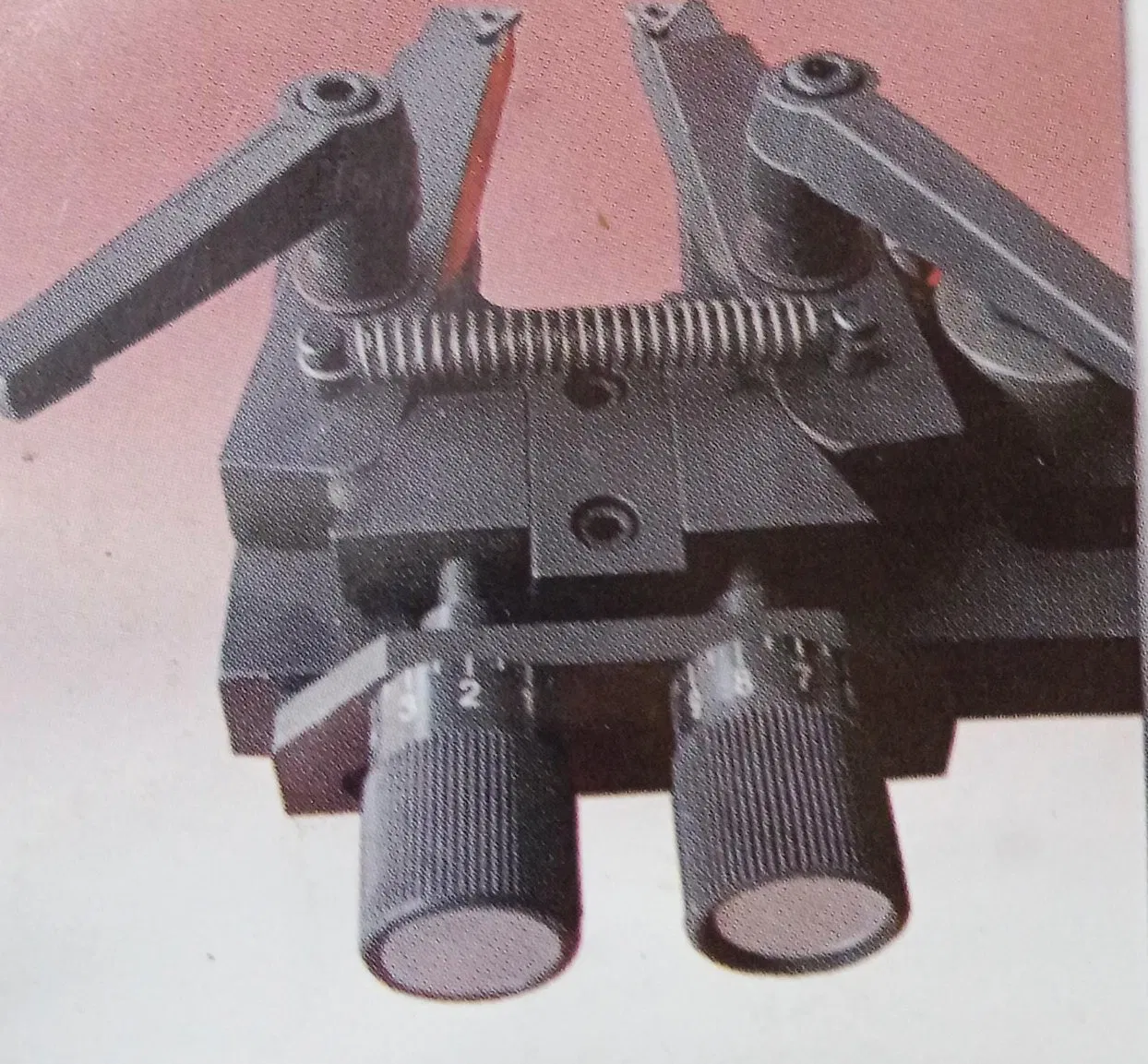

Precision double cutter and fast drum to rotor conversion help improve your service capability.
DC motor designed to meet the requirements of industrial motion control.
Positive rake cutter tip angle provides for a one pass finish virtually every time, allowing for fast completion.

Frequently Asked Questions

What is the range of brake drums and discs that the T8445A can process?
The T8445A handles drum diameters from 180mm to 450mm and disc diameters from 102mm to 400mm.
Does this machine require traditional bell clips for mounting?
No, it utilizes an advanced "Replacement adapter" system that eliminates the need for traditional bell clips and cones.
What are the available spindle speeds for this lathe?
The equipment features three spindle speeds: 20, 52, and 85 RPM to suit various cutting requirements.
Is the machine capable of both rough and fine finishing?
Yes, the continuously variable spindle and cross feed speed allow for both fast roughing and high-precision fine finishing.
What type of motor powers the T8445/T8465 series?
The machines are equipped with a 1.1KW motor, specifically a DC motor designed for industrial motion control.
Can the machine complete the finishing in a single pass?
Yes, the positive rake cutter tip angle is designed to provide a high-quality finish in virtually a single pass.
