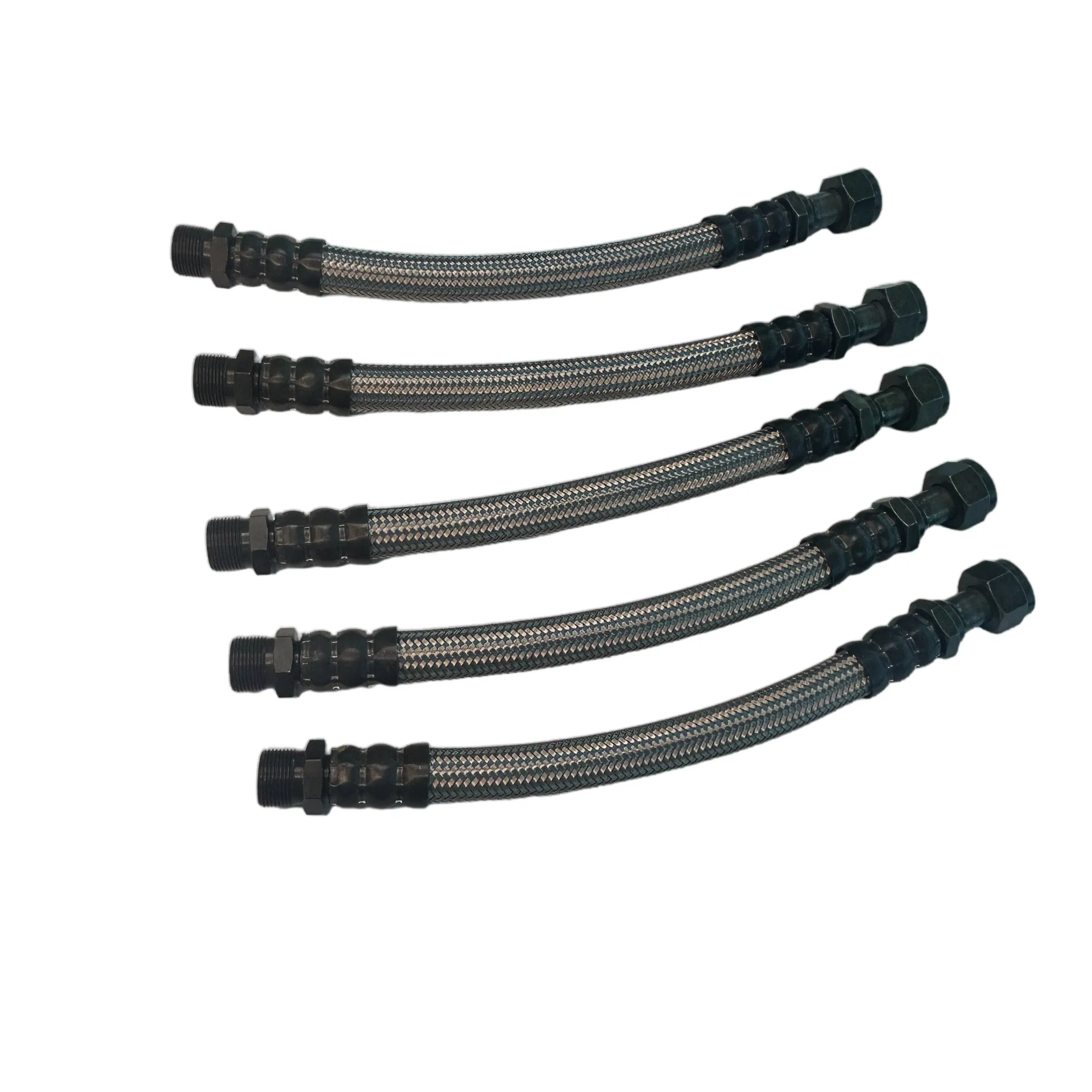

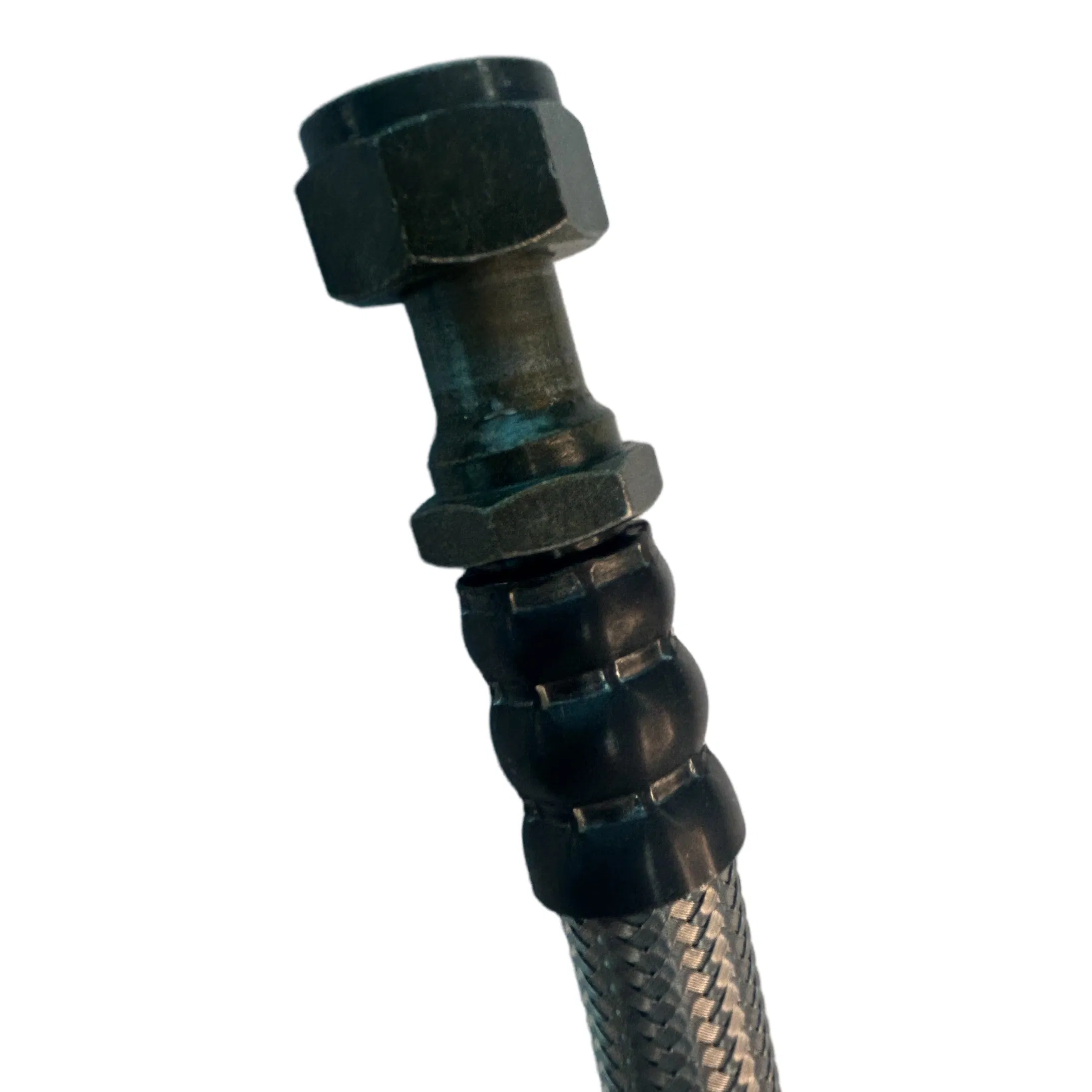

High-Grade EPDM Synthetic Rubber Brake Line with Fibre Weaving
High-Grade EPDM Synthetic Rubber Brake Line with Fibre Weaving
High-Grade EPDM Synthetic Rubber Brake Line with Fibre Weaving
High-Grade EPDM Synthetic Rubber Brake Line with Fibre Weaving
High-Grade EPDM Synthetic Rubber Brake Line with Fibre Weaving
1 / 5
High-Grade EPDM Synthetic Rubber Brake Line with Fibre Weaving
High-Grade EPDM Synthetic Rubber Brake Line with Fibre Weaving
High-Grade EPDM Synthetic Rubber Brake Line with Fibre Weaving
High-Grade EPDM Synthetic Rubber Brake Line with Fibre Weaving
High-Grade EPDM Synthetic Rubber Brake Line with Fibre Weaving

High-Grade EPDM Synthetic Rubber Brake Line with Fibre Weaving

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information

Model NO.Brake hose
TypeBrake System
MaterialSteel
PositionFront
CertificationISO/TS16949, IATF-16949
ClassificationDisc
Drum BrakesBrake Drum
Inner TubeEPDM
CladdingEPDM Synthetic Rubber
EnhancementFibre Weaving
Inside Diameter1/8 Inch
HS Code870830999
Production100000 Sets/Year
OriginChina

Packaging & Delivery

Package Size60.00cm * 30.00cm * 15.00cm
Gross Weight2.000kg
Transport PackagePlastic Bag + Carton Box + Pallet

Product Description

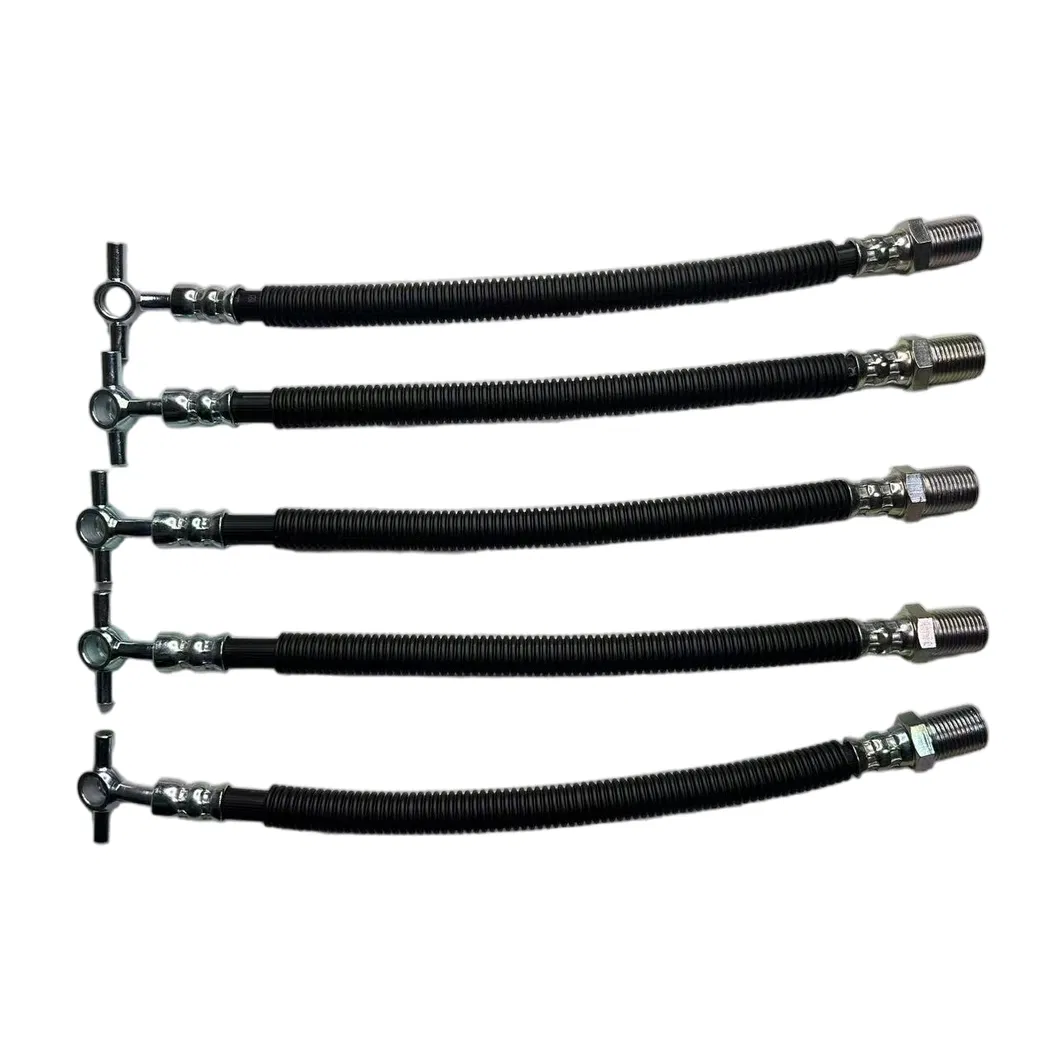

EPDM Rubber Hose 1/8 Inch Brake Hose
EPDM Rubber Hose 1/8 Inch Brake Hose
This high-performance EPDM rubber brake hose is engineered to deliver exceptional durability and reliability in demanding braking systems. Crafted with a 1/8-inch inner diameter, the hose features a robust braided reinforcement layer for enhanced pressure resistance and structural integrity, ensuring safe and precise fluid transmission in automotive, motorcycle, or industrial applications.

The EPDM (Ethylene Propylene Diene Monomer) rubber construction provides superior resistance to heat, ozone, abrasion, and hydraulic fluids, making it ideal for extreme temperatures (-40°F to +250°F) and harsh environments. Its flexibility allows for easy installation in tight spaces while maintaining leak-free performance under high-pressure conditions.
Key Features:
  • 1/8" ID, braided reinforcement for strength
  • EPDM rubber resists heat, oil, and weathering
  • High-pressure tolerance with minimal expansion
  • Flexible, kink-resistant design
  • Compliant with automotive safety standards

Technical Specifications

Stats Description Stats Description
Materials Inner: EPDM rubber; Reinforcement: Polyester/aramid/wire braid; Cover: Weatherproof rubber Applicable Medium Brake fluid (DOT 3/4/5.1), air, water based liquid
Inside Diameter 1/8 inch (3.18 mm) Certification SAE J1401, DOT FMVSS 106, ISO 3996
Outside Diameter Approx 6-8 mm Weather Fastness Ozone resistance, UV, aging resistance
Working Pressure 15-25 MPa (2175-3625 psi) Pliability Minimum bending radius about 5×OD
Burst Pressure ≥ 60 MPa (8700 psi) Colour Black (Customizable)
Temperature Range -40°C to +120°C (Peaks to 150°C) Application Automotive/motorcycle braking, hydraulic systems
Brake Line Detail 1
Brake Line Detail 2
Brake Line Detail 3

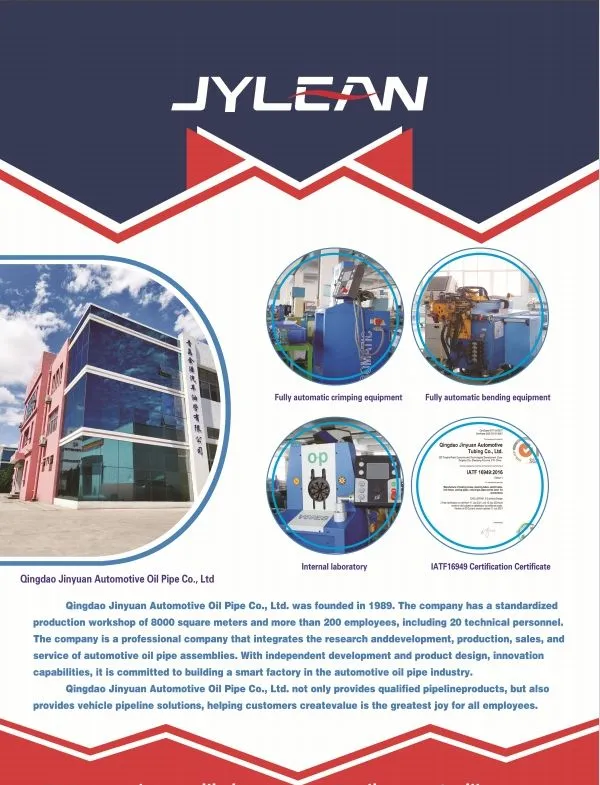

Application 1

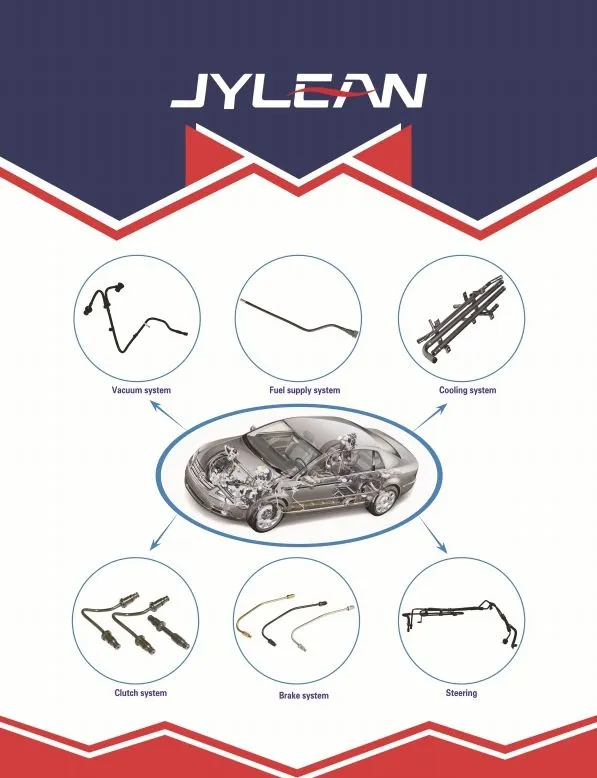

Application 2

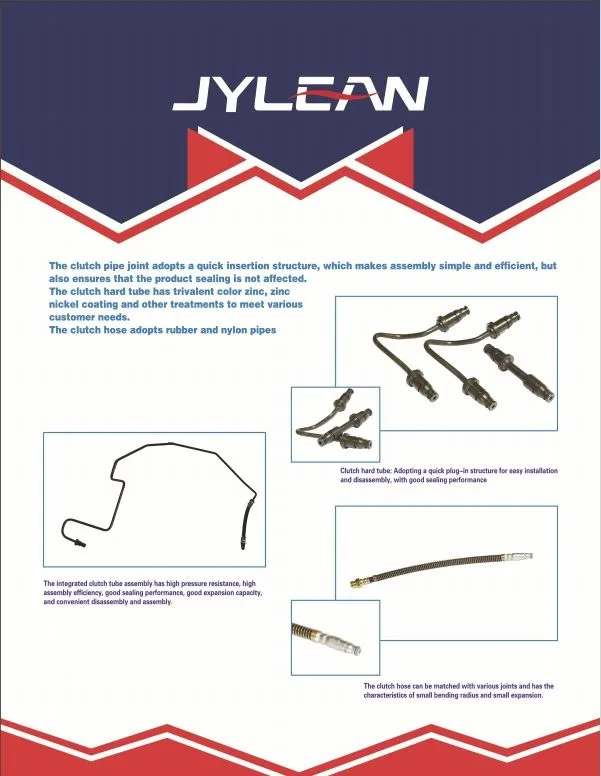

Application 3

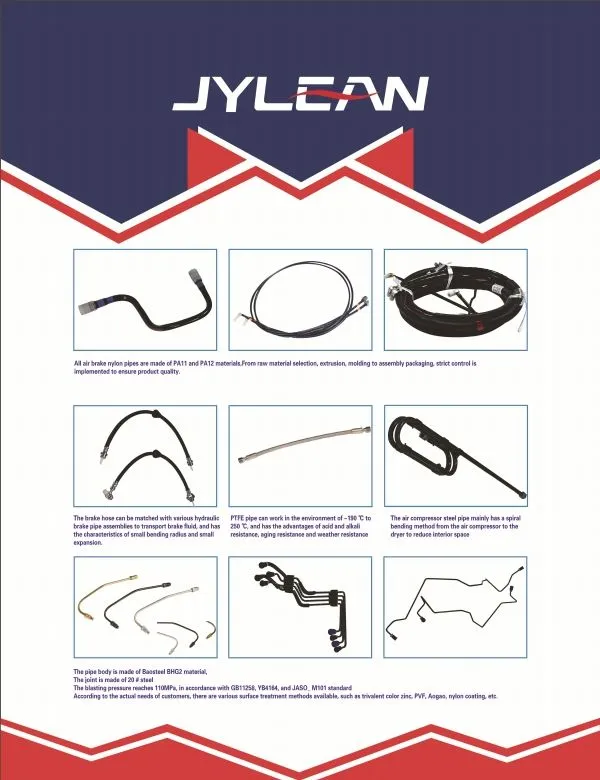

Application 4

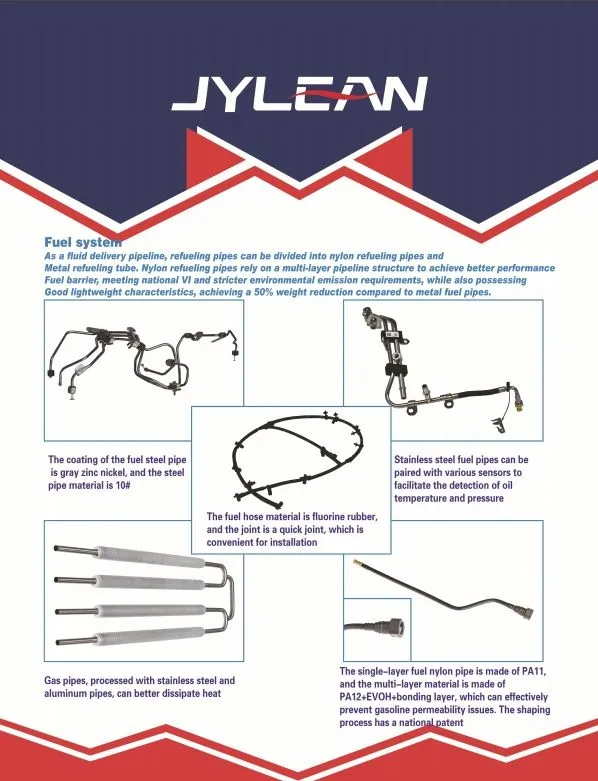

Application 5

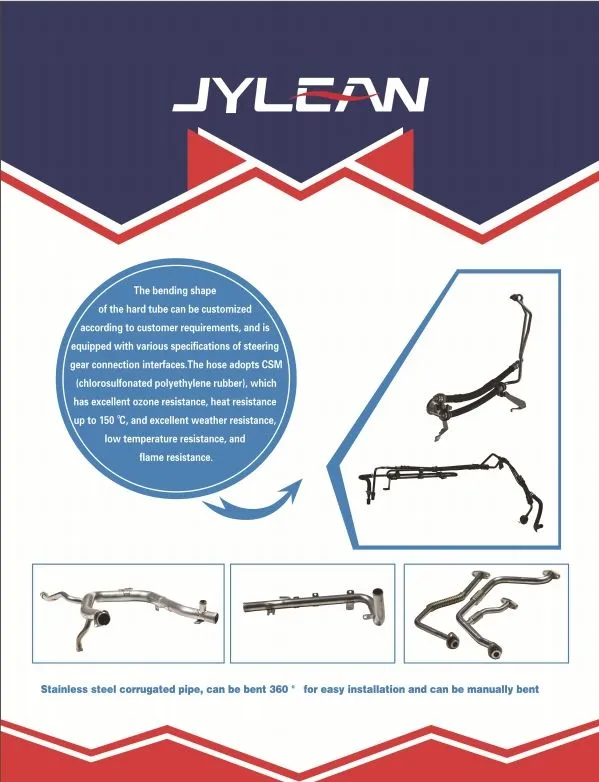

Application 6

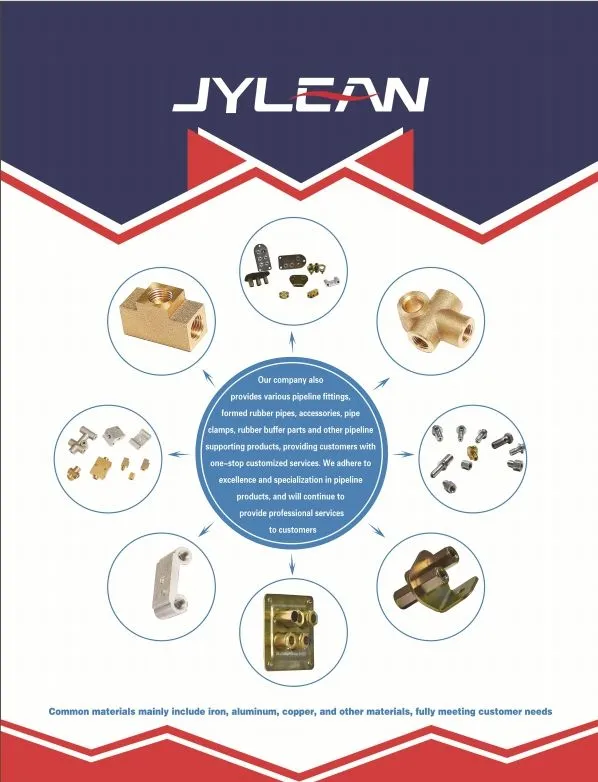

Application 7

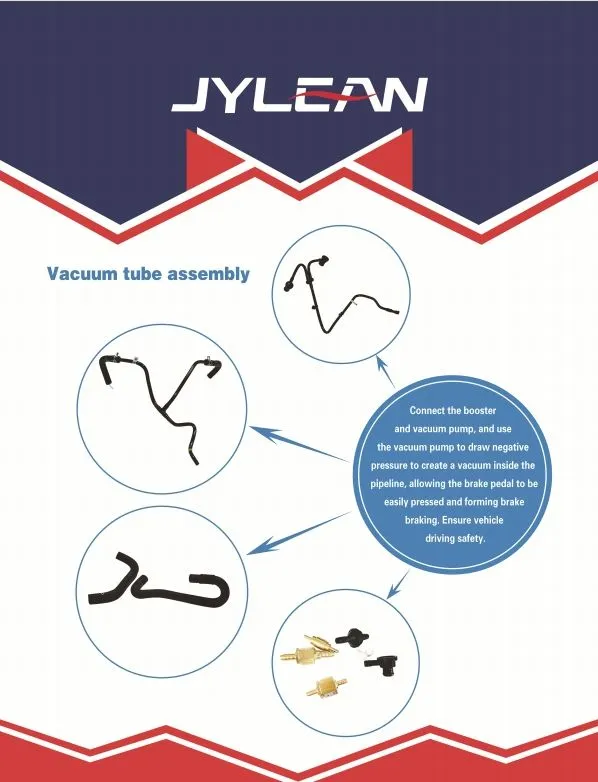

Application 8

Frequently Asked Questions

Who is JYLEAN?
JYLEAN is a professional automotive pipe manufacturer with a history of more than 30 years in the market, exporting to 10+ countries with a high reputation for quality.
Can you produce according to sample?
Yes, we can produce exactly according to your physical samples or technical drawings.
What is your sample policy?
Usually, samples are free of charge, but the customer is responsible for the shipping fees.
What are your terms of payment and delivery?
We accept 30% T/T as deposit and 70% before delivery. Delivery terms include FOB, CIF, EXW, and CFR.
What is the typical delivery time?
Generally, it takes about 45 days after receiving the deposit, depending on the items and order quantity.
Do you inspect all goods before delivery?
Yes, we conduct 100% visual inspections and performance tests on all products before they are shipped.
