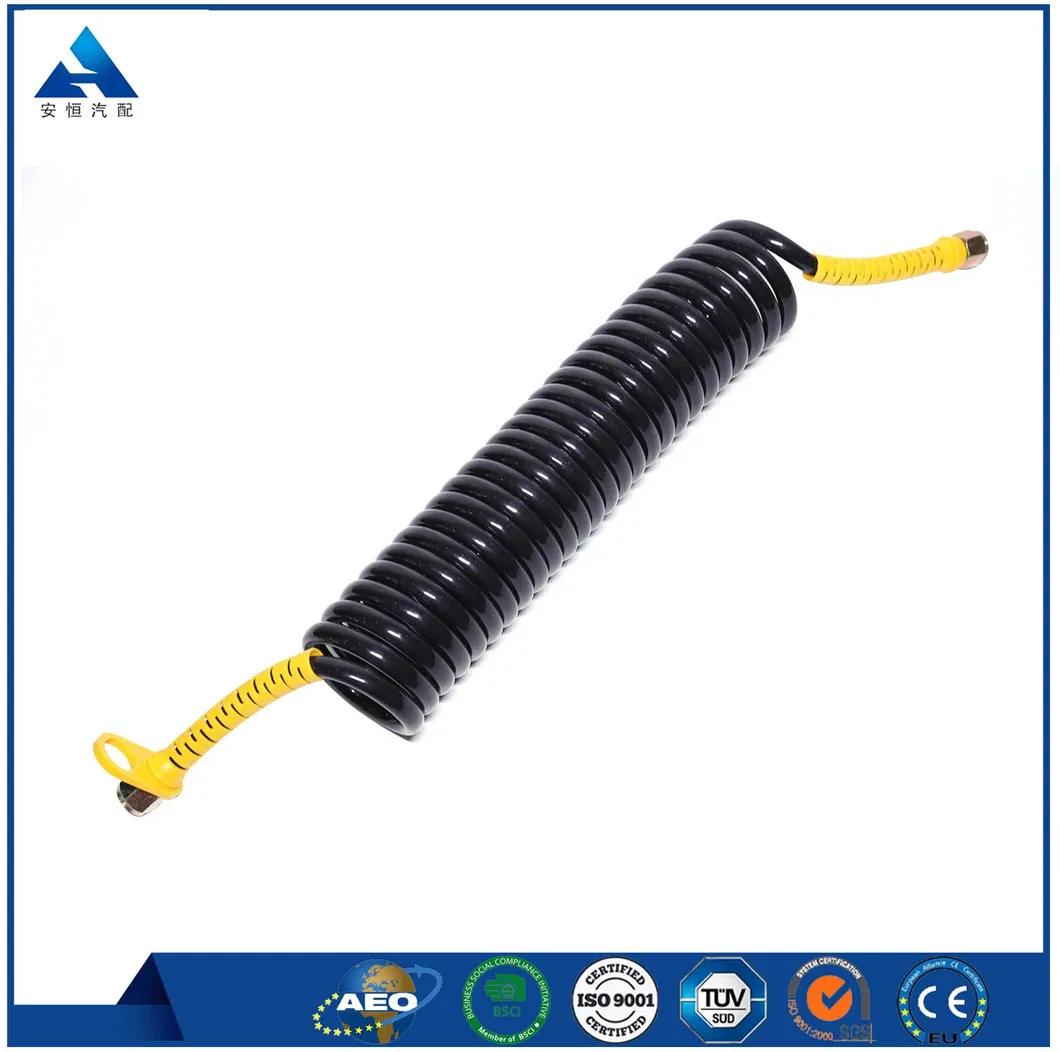

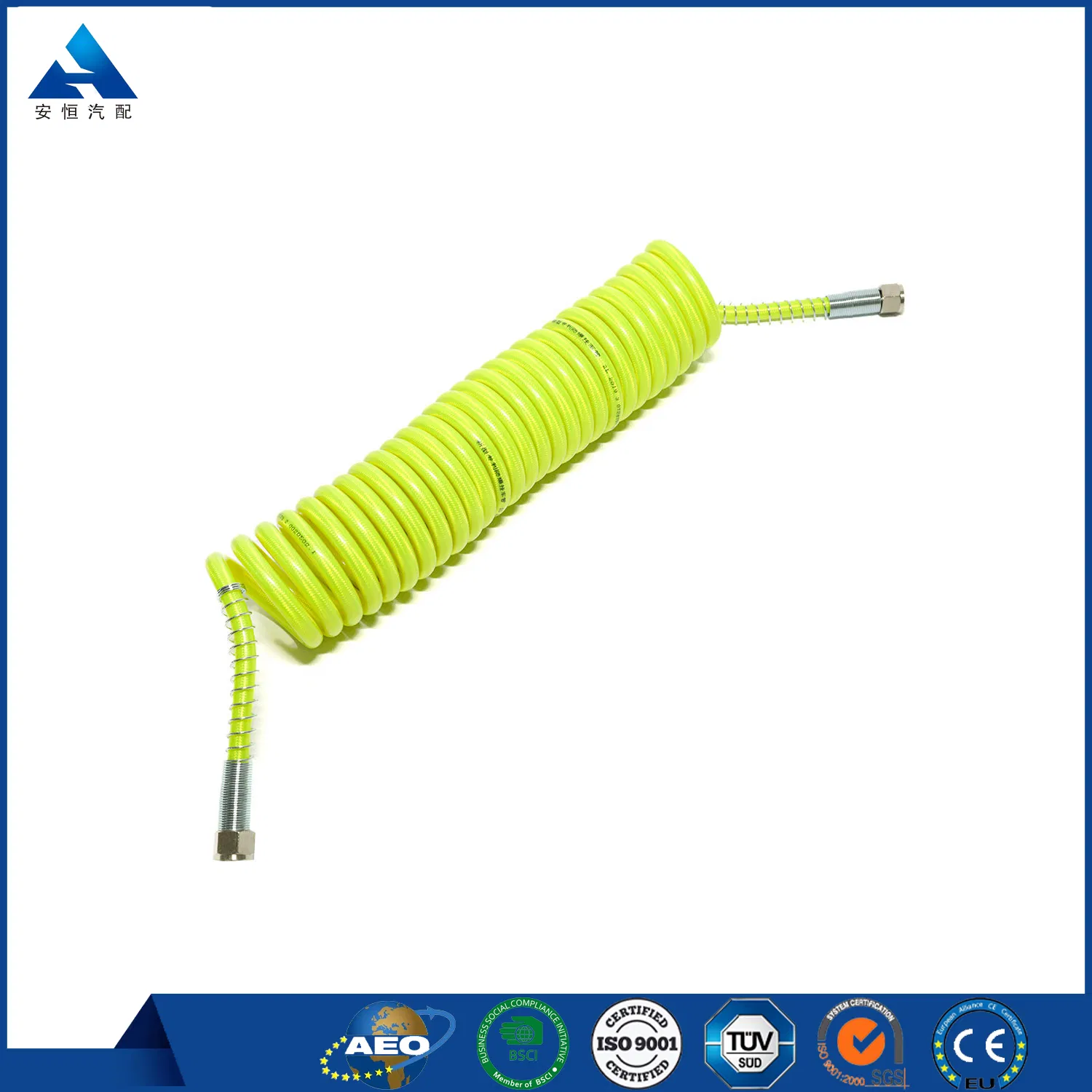

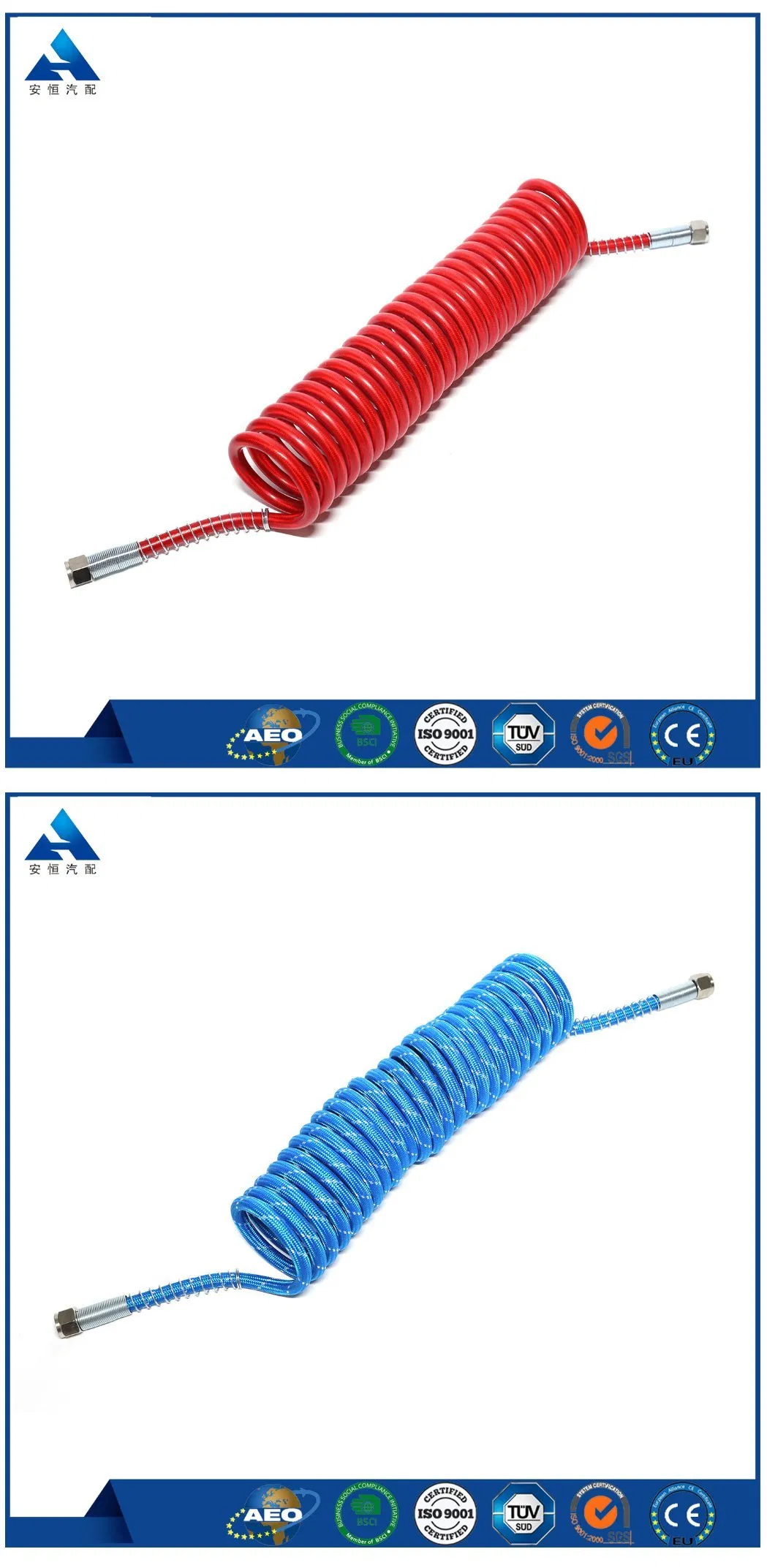

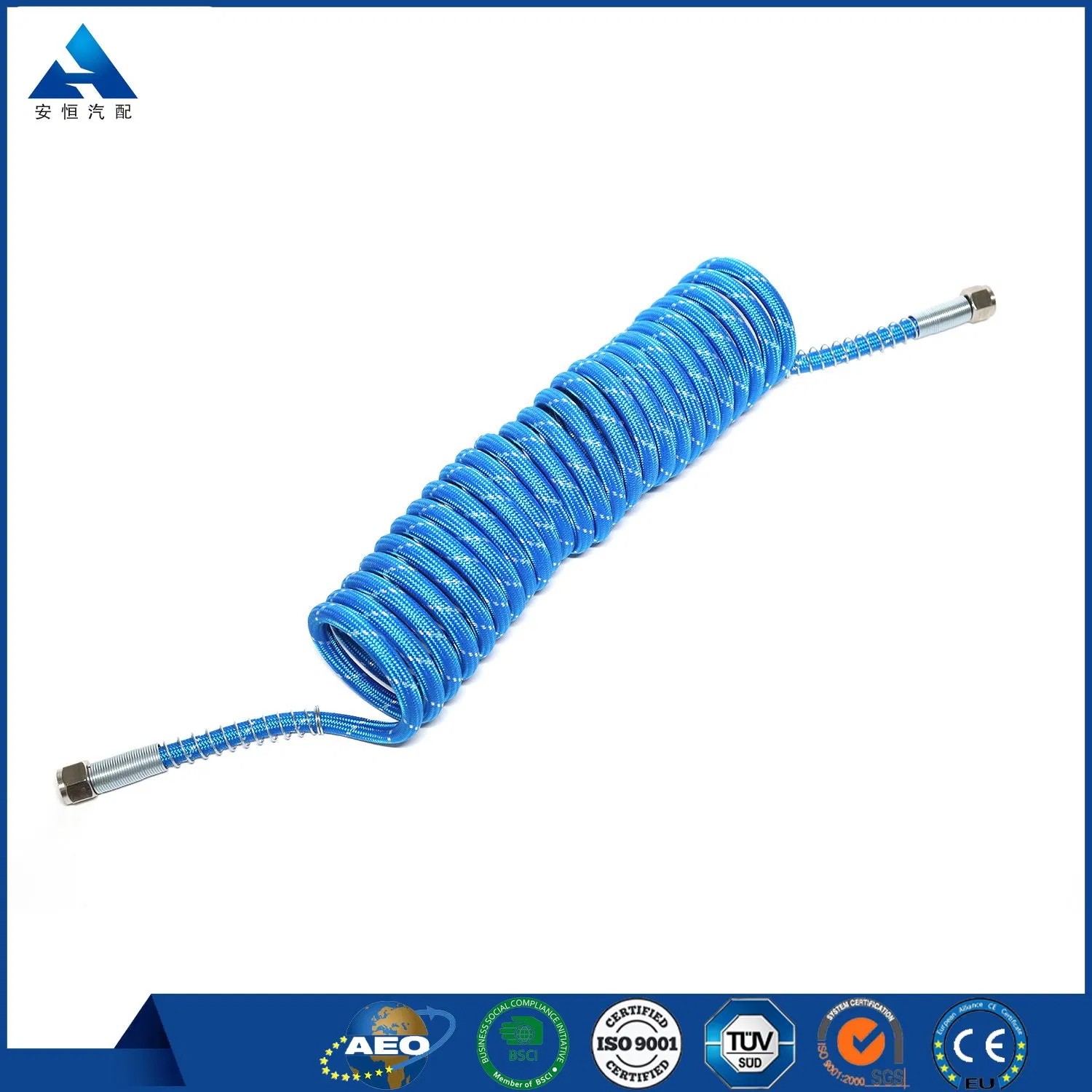

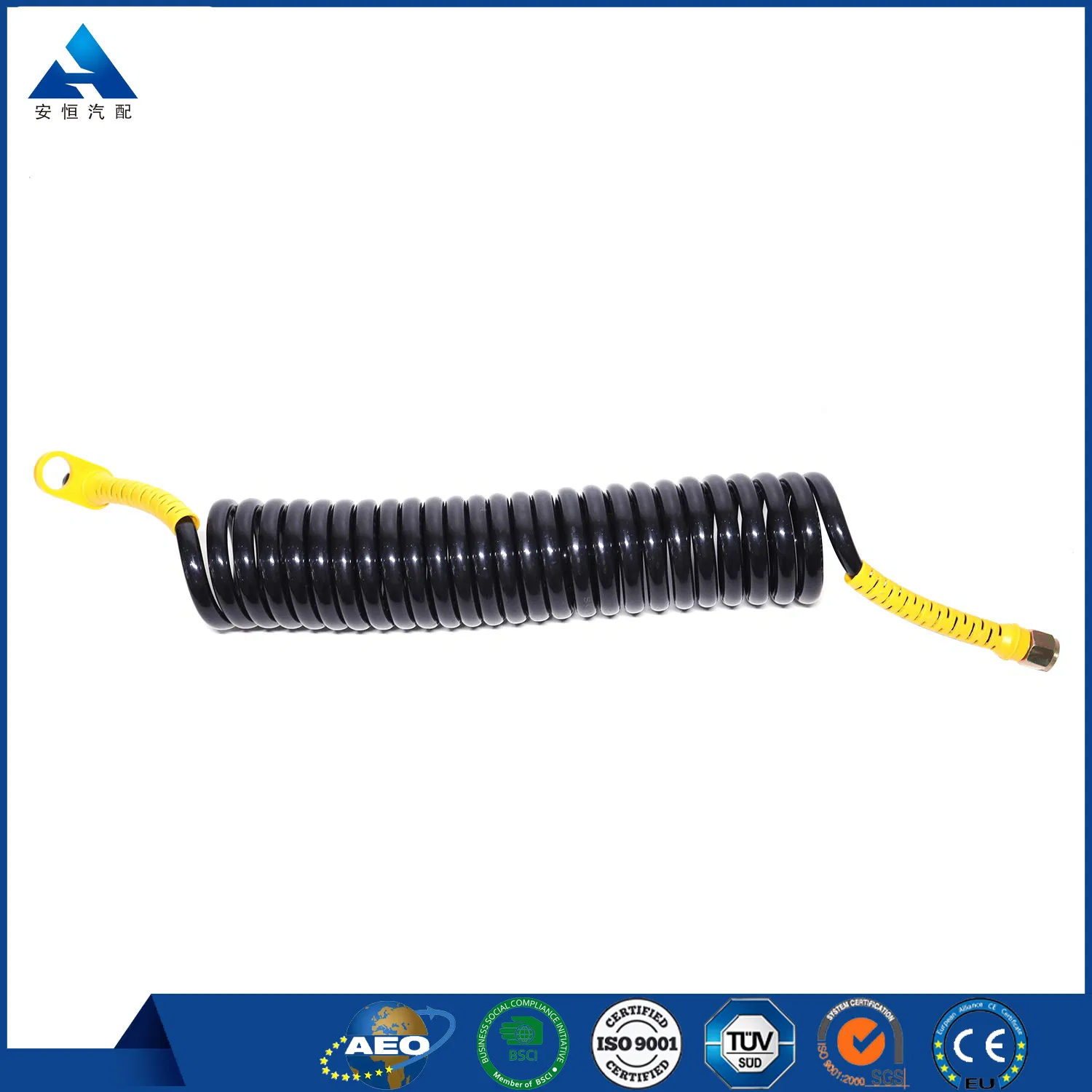

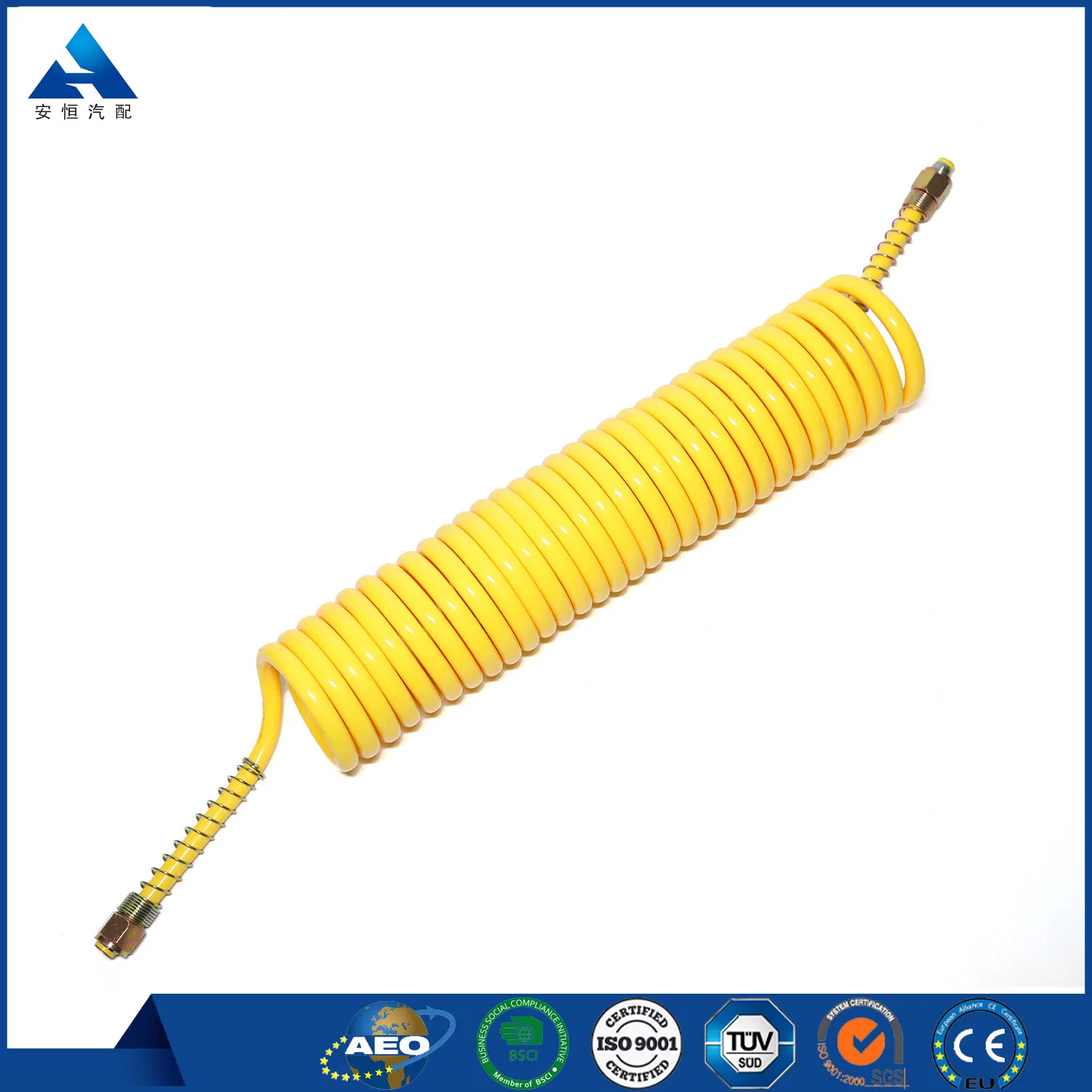

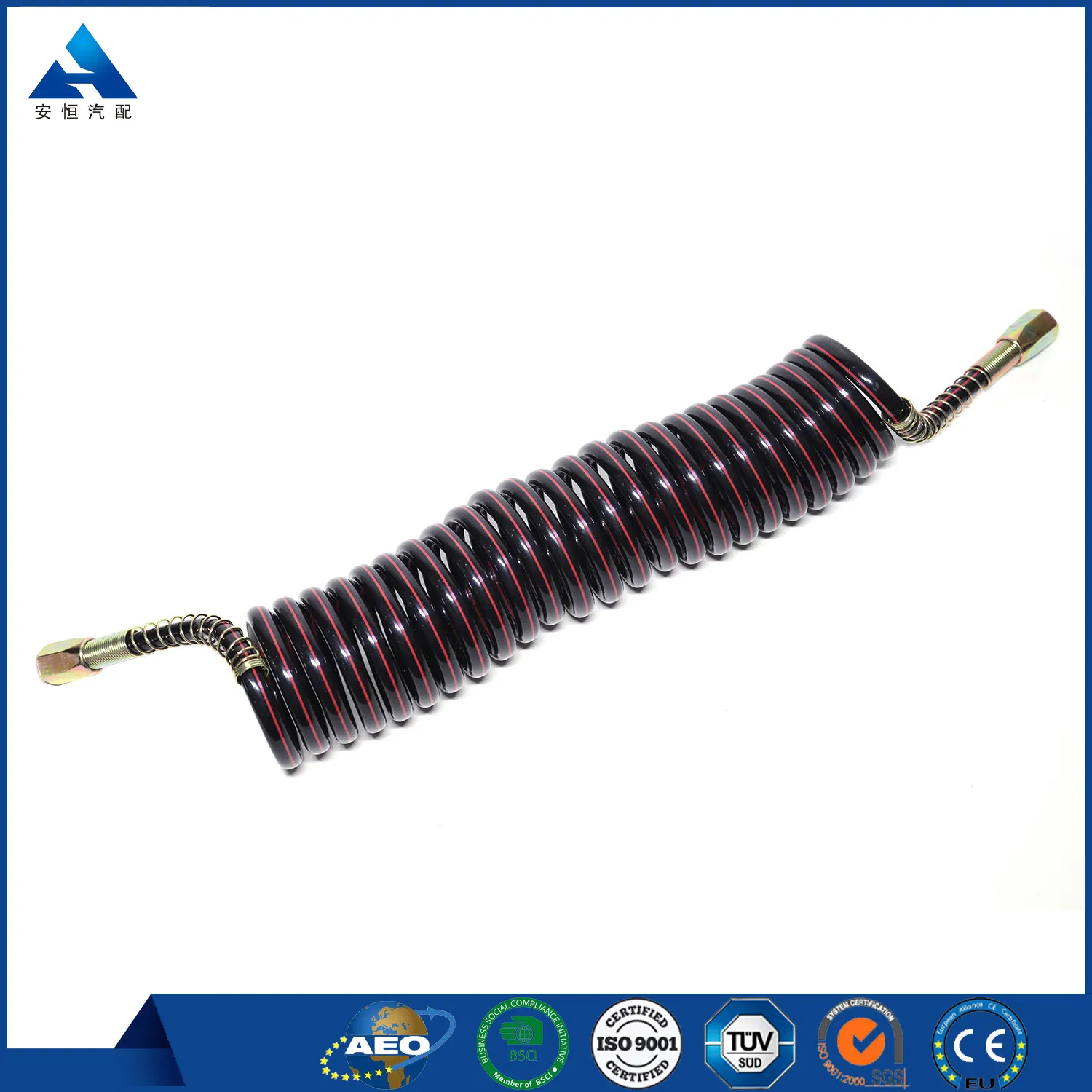

Material: Polyurethane (PU). Designed as an Auto Trailer Pneumatic Air Brake Coil, often referred to as Nylon Tube Spiral Hose for heavy-duty truck air systems.

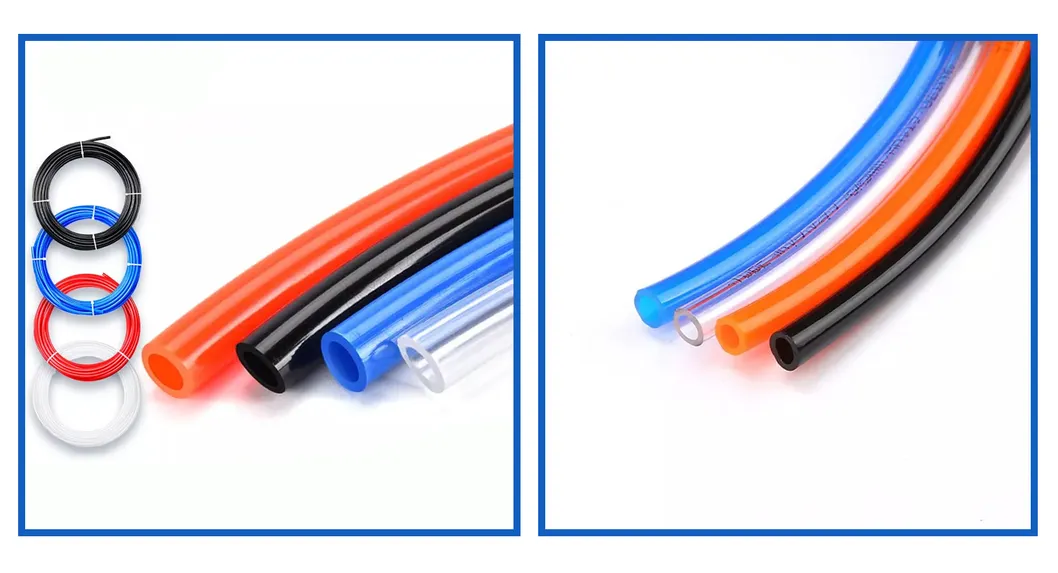

Extensively used for air brake systems, automated machinery, coating machinery, and various pneumatic tools. The polyether-based PU tube offers hydrolysis resistance, anti-bacterial, and anti-fungal properties, making it suitable for gardening, cleaning, and water hose applications as well.
| Spiral Air Brake Hose (PA) | ||||||
|---|---|---|---|---|---|---|
| Product Number | ID (mm) | OD (mm) | Wall (mm) | Pressure (Mpa) | Length (m) | Temperature |
| ABH1209 | 9 | 12 | 1.5 | 1.0 - 1.2 | 6 / 7.5 / 9 | -40ºC ~ +100ºC |
| Spiral Air Brake Hose (PU) | ||||||
|---|---|---|---|---|---|---|
| Product Number | ID (mm) | OD (mm) | Wall (mm) | Pressure (Mpa) | Length (m) | Temperature |
| ABH0805 | 5 | 8 | 1.5 | 0.8 - 0.9 | 9 / 12 / 15 | -40ºC ~ +80ºC |
| ABH1065 | 6.5 | 10 | 1.75 | 0.8 - 0.9 | 9 / 12 / 15 | -40ºC ~ +80ºC |
| ABH1208 | 8 | 12 | 2 | 0.8 - 0.9 | 6 / 7.5 / 9 | -40ºC ~ +80ºC |
