Performance PTFE Stainless Steel Braided Brake Line for Racing Caliper

Basic Specifications

Model NO.:Brake hose

Type:Brake System

Material:Steel / EPDM

Certification:ISO/TS16949, IATF-16949, DOT, CE

Inner Tube:EPDM

Cladding:EPDM Synthetic Rubber

Enhancement:Fibre Weaving

Inside Diameter:1/8 Inch (3.175mm)

Product Description

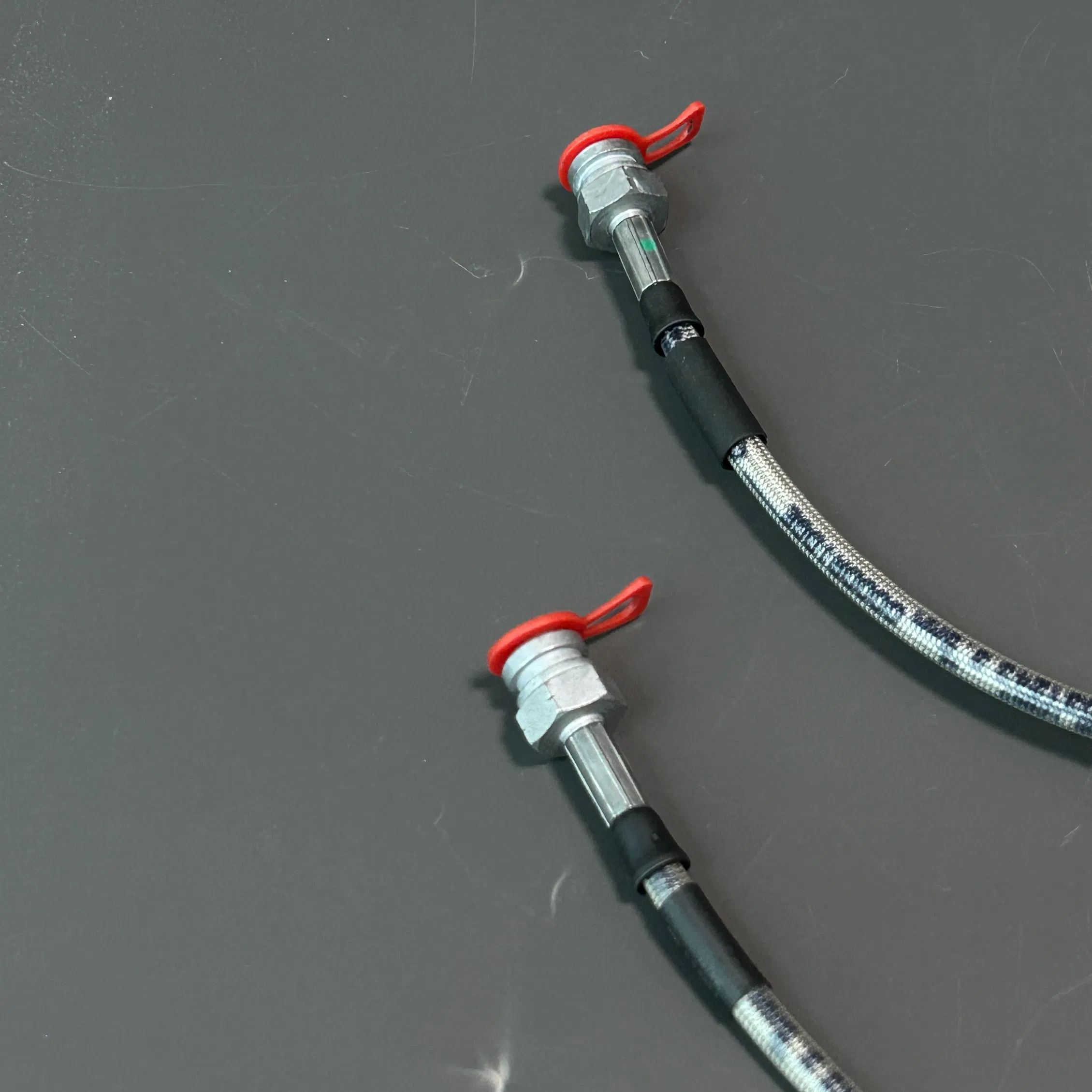

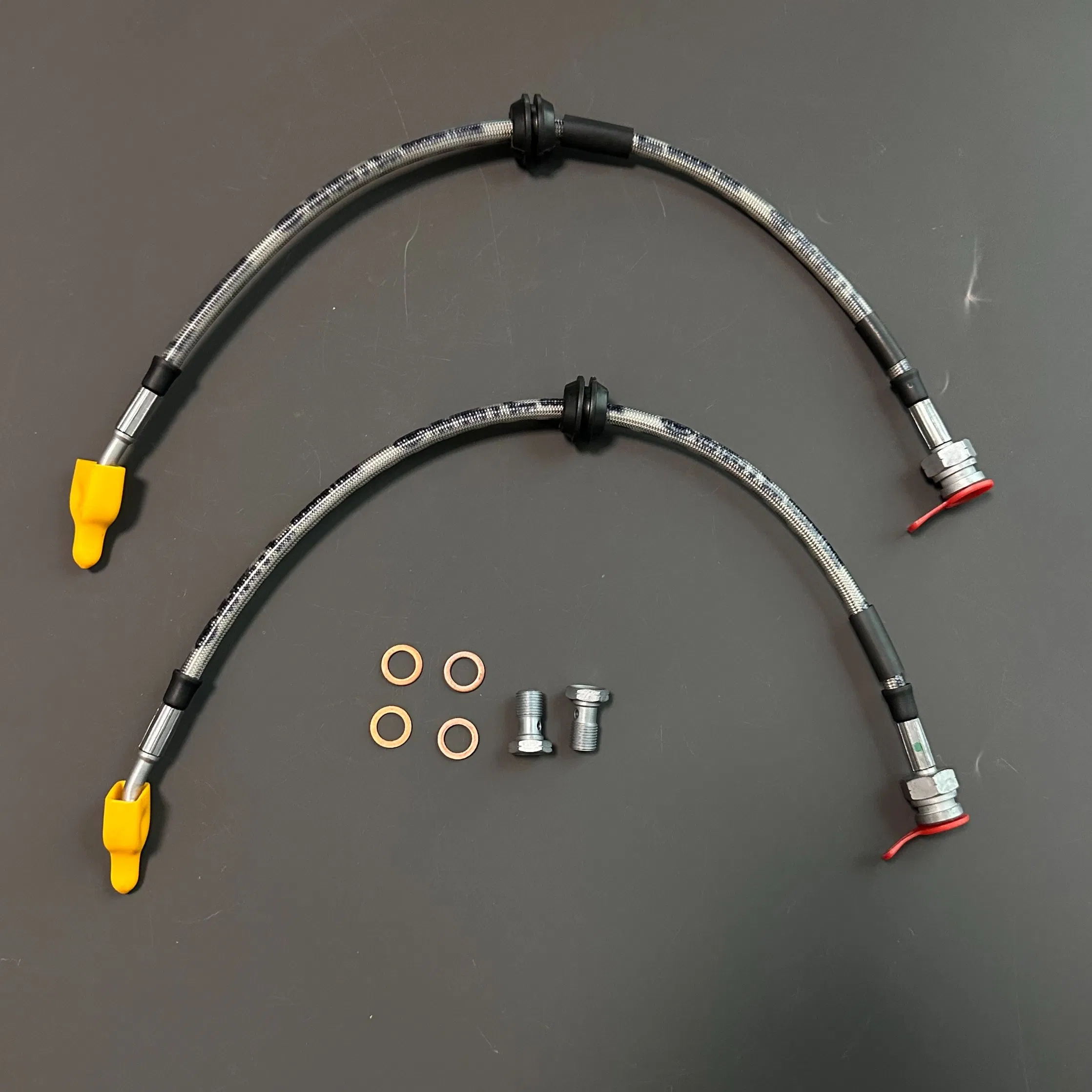

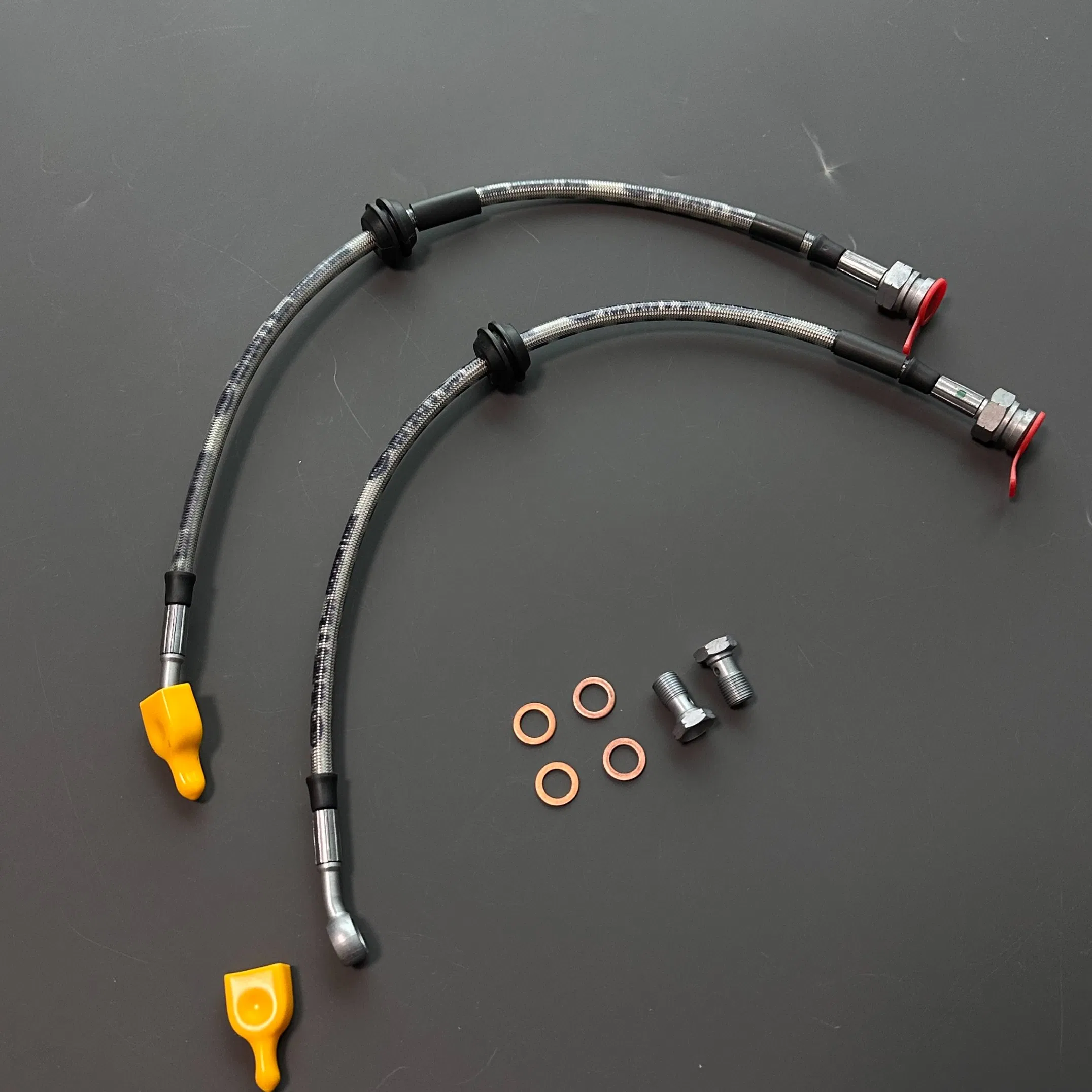

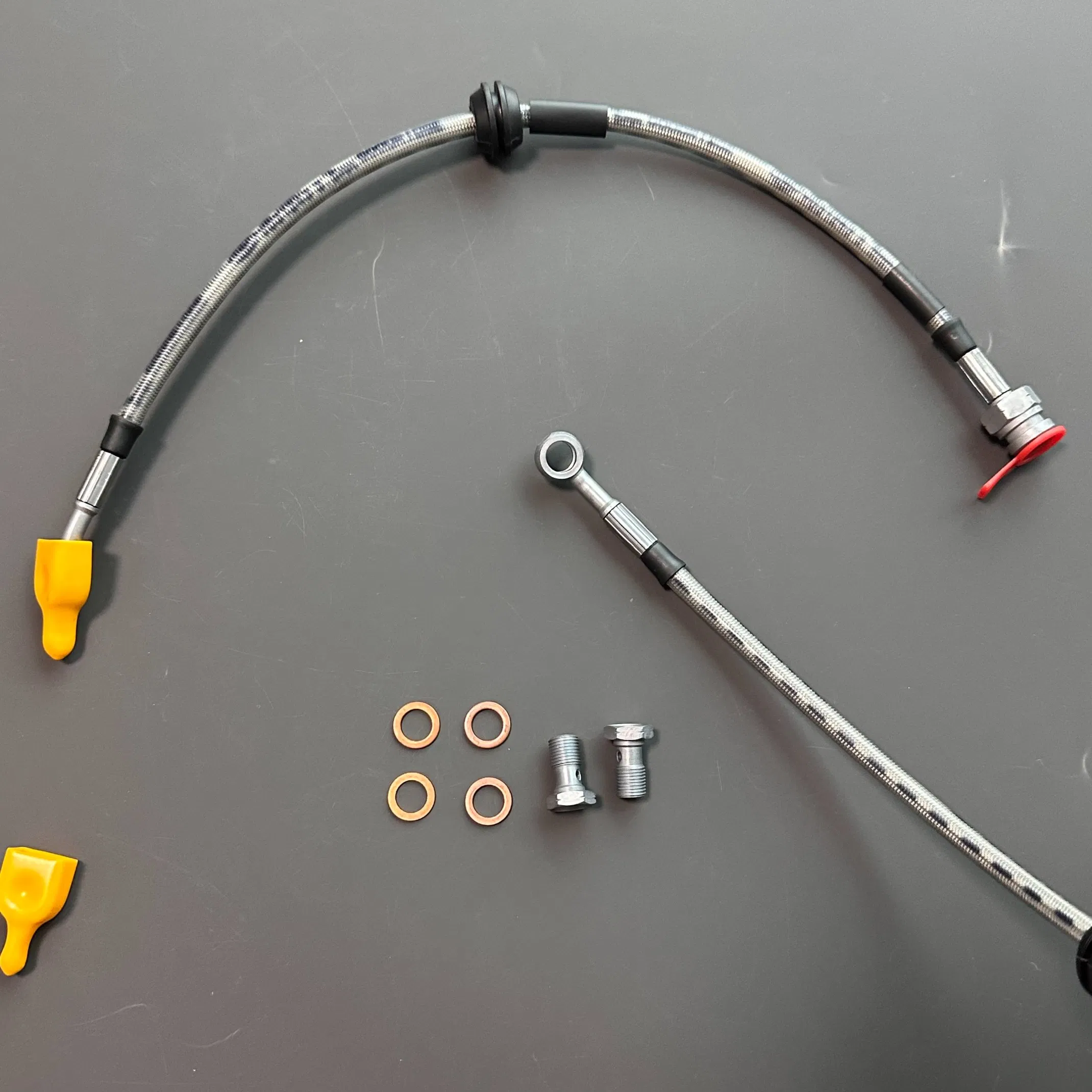

Performance PTFE Stainless Steel Braided Brake Line

We specialize in the manufacturing of high-performance brake tubing systems, offering a complete range of products to meet the diverse needs of the global automotive industry. Our commitment to precision engineering, stringent quality control, and exceptional durability ensures optimal safety and reliability for every vehicle. We excel in providing customized production services to tailor each solution to your specific technical requirements and application standards.

Technical Specifications

Product Category	Type	Tube Material & Construction	End Fittings	Standard Dimensions	Min. Pressure Rating	Customization Options
Brake Hose	Hydraulic Brake Hose	ECE R90 compliant synthetic rubber, Textile/steel wire reinforcement	M10×1.0, M12×1.0, 3/8-24 UNF; Zinc-plated steel, stainless steel	ID: 3/16" (4.75mm); Length: 300-1500mm	2,500 PSI (172 bar)	Any length, any fitting, color marking
	PTFE Stainless Braided Hose	PTFE inner liner, 304/316 stainless steel braid, PVC/Nylon cover	AN Fittings: -3AN, -4AN; Metric: M10×1.0, M12×1.0; Banjo	ID: 4.8-6.3mm; Length: Custom	4,000+ PSI (276+ bar)	Braid density, cover materials
	Air Brake Hose	Oil-resistant synthetic rubber, Weather-resistant cover	1/4" NPT, 3/8" NPT, M22×1.5; Push-to-connect	ID: 1/4" (6.3mm), 3/8" (9.5mm)	150 PSI (10 bar)	Special lengths, fitting combos
Metal Brake Line	Steel Brake Line	Double-wall galvanized steel, SAE J1047 compliant	45° inverted (SAE), bubble (ISO); M10×1.0, 3/8-24 UNF	OD: 3/16", 1/4"; Wall: 0.71-0.89mm	3,000 PSI (207 bar)	Pre-made lines with specific bends
	Copper-Nickel Line	CuNiFe alloy (Kunifer), Corrosion resistance	45° inverted, bubble; Various adapters	OD: 4.75mm, 6mm	3,000 PSI (207 bar)	Complex bend patterns
	Stainless Steel Line	304/304L stainless steel, High strength	AN Fittings: -3AN, -4AN; Metric/SAE Flare	OD: 3/16", 1/4"	4,000+ PSI (276+ bar)	Medical-grade polish, coatings

Custom Brake Tubing Solutions

We provide highly flexible custom brake tubing solutions designed to meet your exact specifications. Our capabilities cover a wide range of materials including rubber, PTFE, stainless steel, and copper-nickel, available in both metric and imperial sizes. We offer an extensive variety of end fittings with multiple options for threads, angles, and materials.

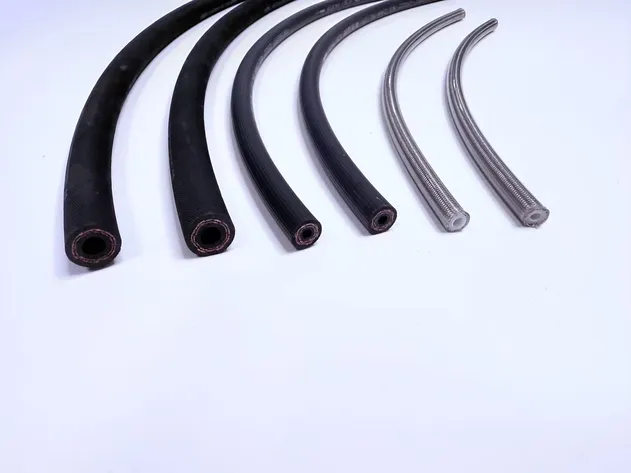

Hose Options

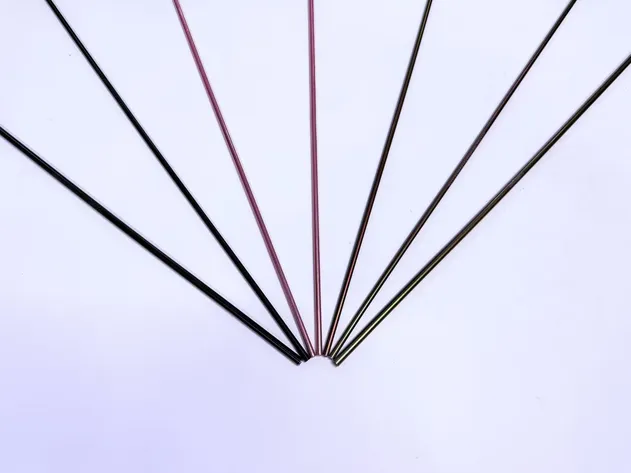

Metal Pipe Solutions

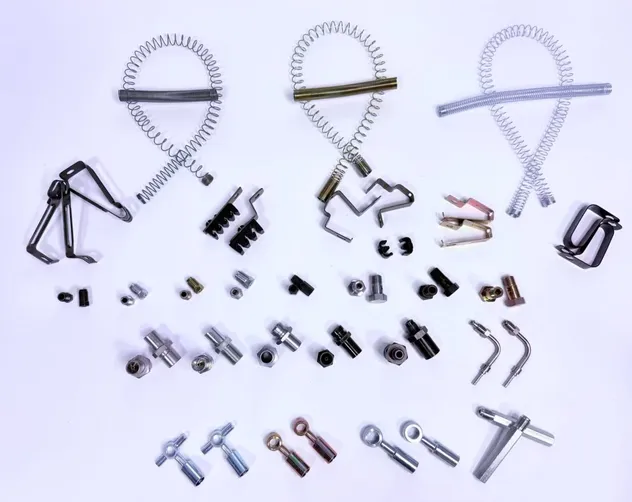

Metal Components

Brake Line Types

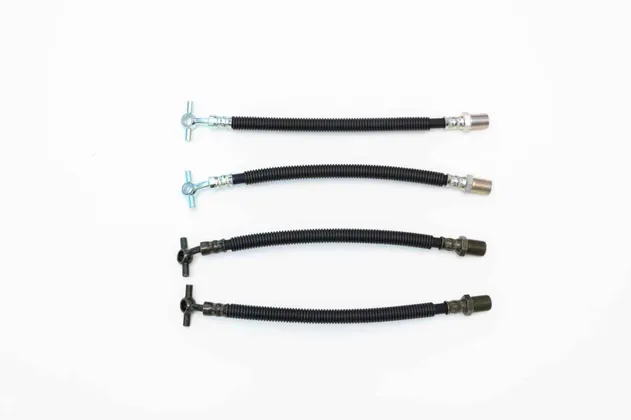

Rubber Brake Hose

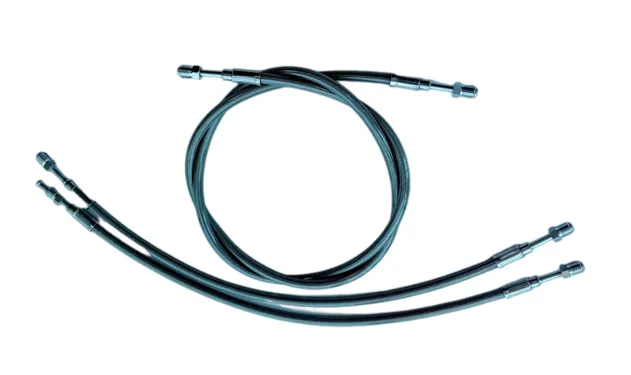

PTFE Stainless Braided

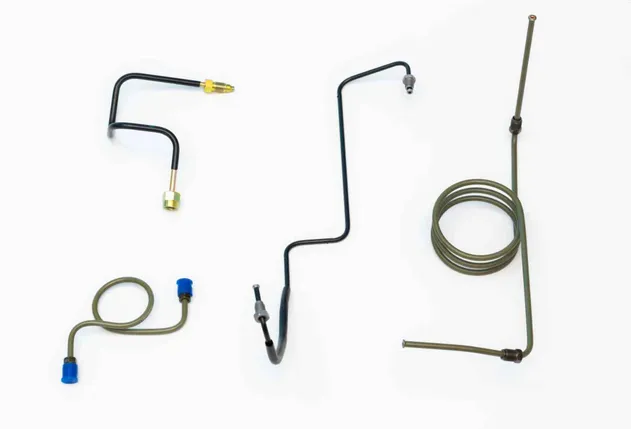

Metal Brake Line

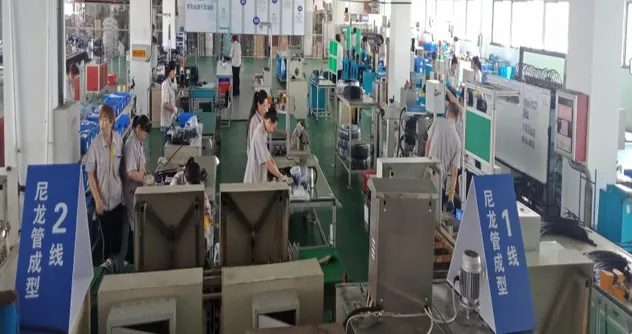

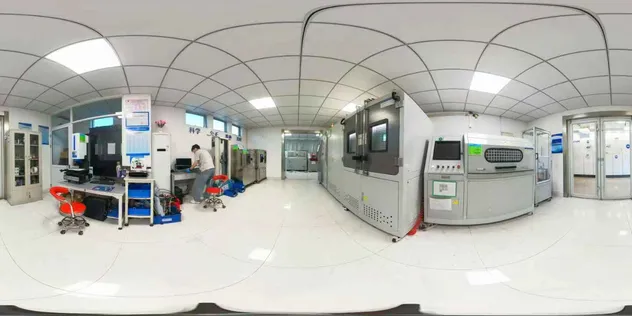

Capabilities & Testing

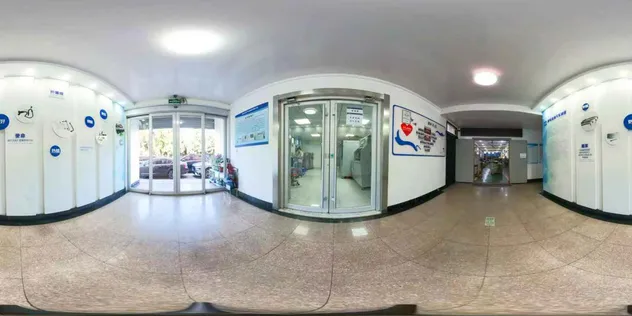

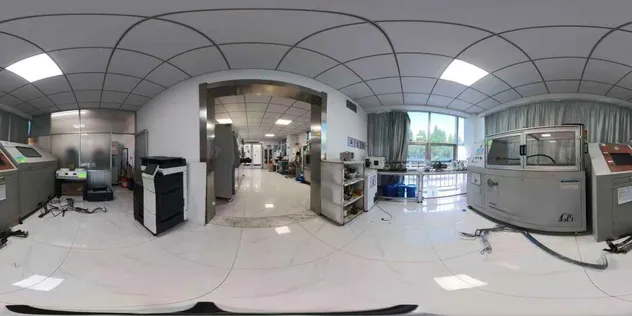

As a trusted manufacturer of automotive fluid systems, we ensure product excellence through advanced in-house testing and a quality system certified to IATF 16949:2016. Our Quality Assurance Center utilizes state-of-the-art equipment to rigorously validate every product in line with ISO, DIN, DOT, and CE requirements.

Cooperation Channels

OEM & Tier 1

2D/3D CAD drawings, technical specifications, and compliance with SAE / ISO / ECE R90 standards.

Aftermarket

OE part numbers preferred or physical samples for precision manufacturing and distribution.

Motorsport

High-performance data (pressure, temp), 3D models, and custom fitting styles for racing applications.

Frequently Asked Questions

What certifications do your brake hoses hold?

Our products are certified to IATF 16949:2016, ISO 9001, DOT, and CE standards, ensuring compliance with global safety requirements.

What is the pressure rating for PTFE braided brake lines?

Our PTFE stainless steel braided hoses are rated for over 4,000 PSI (276+ bar), making them suitable for high-performance and racing applications.

Can you produce custom lengths and fittings?

Yes, we offer fully customized solutions including specific lengths, various thread types (Metric, UNF, NPT), and different fitting angles (45°, 90°, banjo).

What materials are used for the inner tubes?

We typically use high-quality EPDM for hydraulic rubber hoses and PTFE (Teflon) for braided performance lines to ensure fluid compatibility and durability.

Do you offer corrosion-resistant coatings for metal lines?

Yes, we provide various surface treatments including zinc plating, yellow chromate, nickel plating, and passivation for superior corrosion resistance.

What information is needed for a custom modification order?

We require performance data (pressure/temp), connection points, space limits, and ideally a 3D model or dimensional drawing to ensure a perfect fit.
