Product Description

12″ Brake Caliper Mount Bracket Suit Deemaxx Type Rotors

This trailer brake caliper mounting bracket is engineered for use with 12 inch integral or slip-on disc rotors. Designed to fit axles rated from 5,200 lbs to 6,000 lbs with a 5-hole brake flange. The bracket is coated with anti-corrosion finish for enhanced durability in harsh environments. Ideal for trailers requiring disc brake conversions or part replacements. Provides secure caliper alignment and long-lasting brake performance.

Basic Specifications

Model NO.

TCB006

Finish

Dacromet

Fit for

Demaxx slip on 12 inch rotors

Axle Rating

5,200 – 6,000 lbs

Brake Flange

5-hole pattern

Package

Wooden Box

Specification

12"

HS Code

87089910

Technical Features

Material: High-grade steel / Cast iron
Rotor Size: 12 inch integral or slip-on
Anti-Rust: Corrosion-resistant Dacromet coating
Versatility: Left or Right side usable
Application: Boat trailers, RVs, utility trailers
Compatibility: 5-hole pattern brake flange

Product Name	Compatibility	Material	Finish
Caliper Bracket	12" slip-on disc rotors	Cast iron	Dacromet

Product Gallery

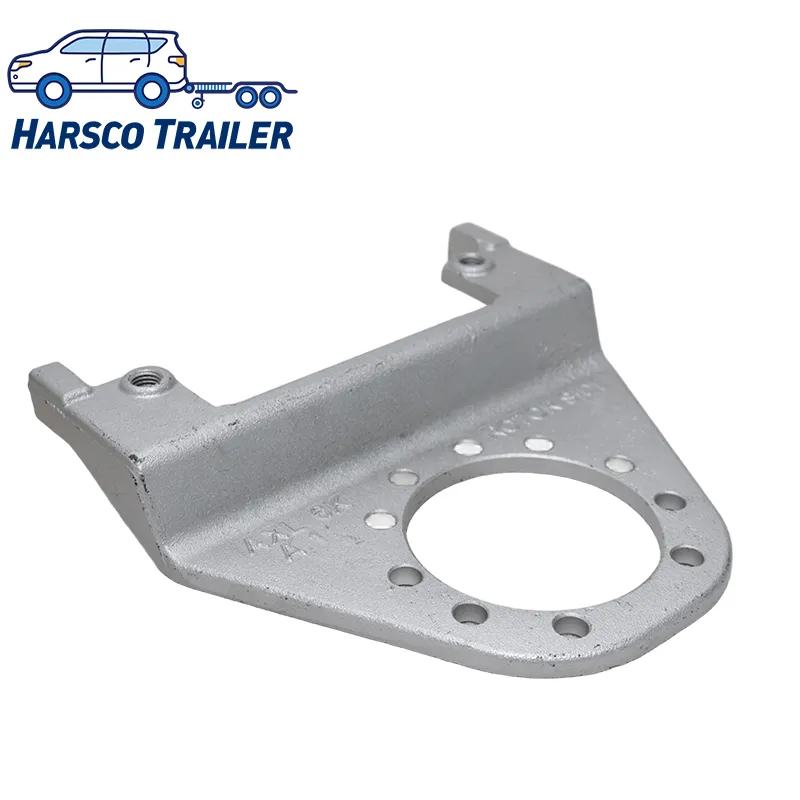

Bracket Front

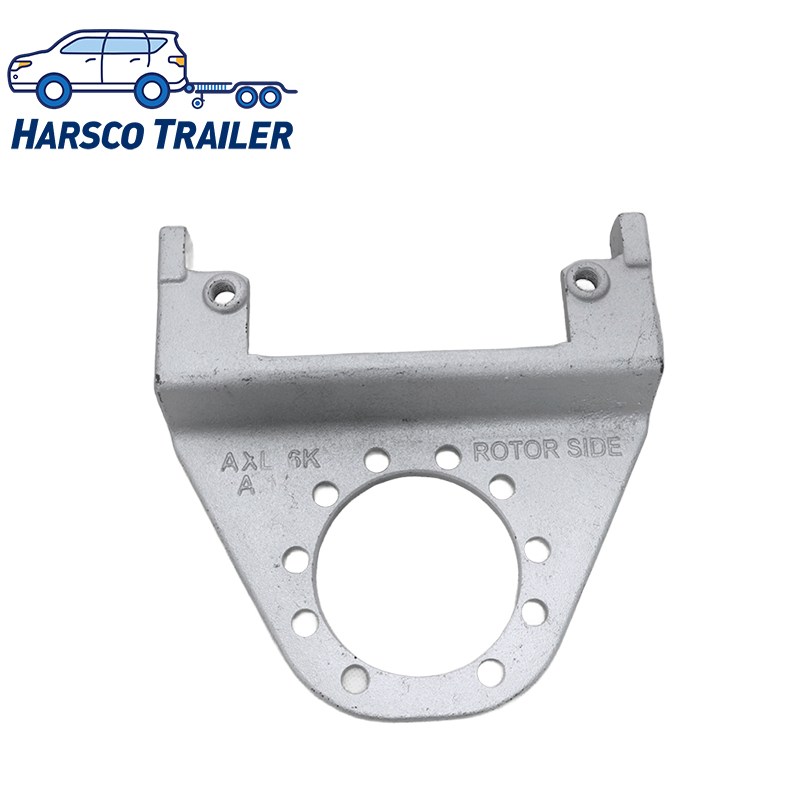

Bracket Side

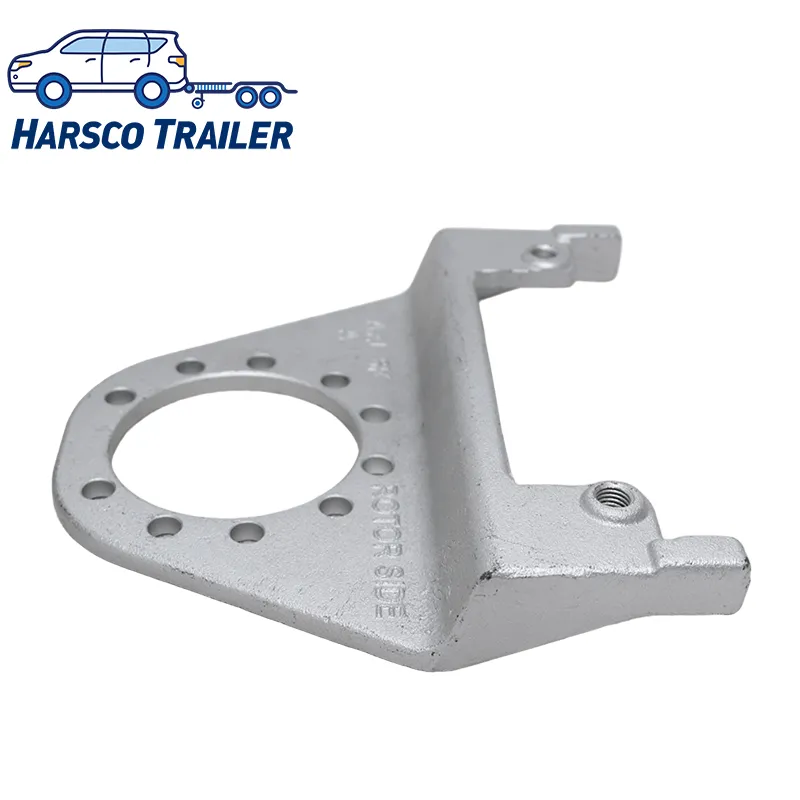

Bracket Back

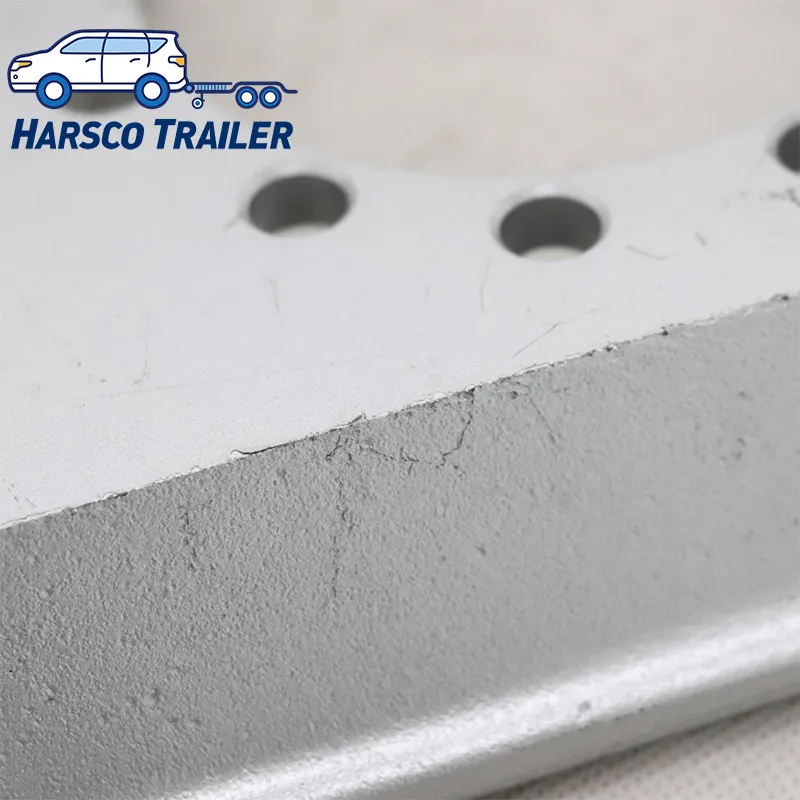

Bracket Installation

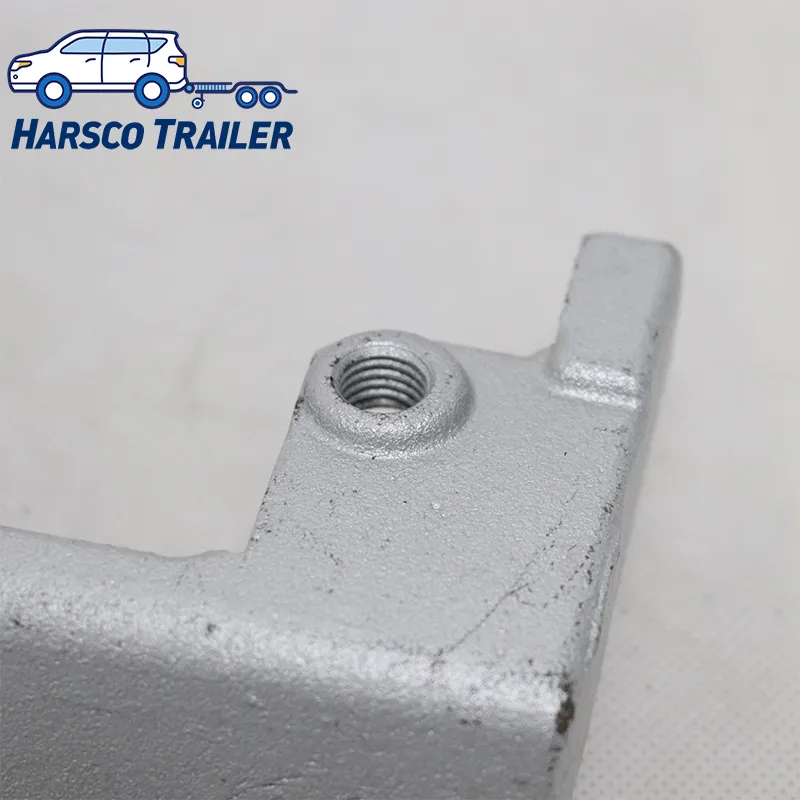

Bracket Detail

Full Set

Packaging & Delivery

Package Size

10.00cm * 20.00cm * 30.00cm

Gross Weight

3.000kg

Frequently Asked Questions

Is this bracket compatible with Deemaxx type rotors?

Yes, this mounting bracket is specifically engineered to suit 12-inch Deemaxx type slip-on or integral disc rotors.

What is the axle weight rating for this product?

The bracket is designed for heavy-duty applications, fitting axles rated between 5,200 lbs and 6,000 lbs.

Does the bracket come with a protective coating?

Yes, it features a Dacromet finish, which provides excellent corrosion resistance, making it ideal for marine and boat trailer applications.

Can I use this on either side of the trailer?

Yes, the bracket is designed for universal positioning, meaning it is usable on both the left and right sides of the axle.

What flange pattern is required for installation?

This bracket is designed to mount onto a standard 5-hole brake flange pattern.

Do you support OEM or custom requirements?

Yes, we provide professional manufacturing services and can accommodate specific requirements for packaging and branding.
