Two Spindle Brake Drum Disc Lathe Brake Disc Brake Drum Cuttingmachinet8465
Two Spindle Brake Drum Disc Lathe Brake Disc Brake Drum Cuttingmachinet8465
Two Spindle Brake Drum Disc Lathe Brake Disc Brake Drum Cuttingmachinet8465
Two Spindle Brake Drum Disc Lathe Brake Disc Brake Drum Cuttingmachinet8465
Two Spindle Brake Drum Disc Lathe Brake Disc Brake Drum Cuttingmachinet8465
1 / 5
Two Spindle Brake Drum Disc Lathe Brake Disc Brake Drum Cuttingmachinet8465
Two Spindle Brake Drum Disc Lathe Brake Disc Brake Drum Cuttingmachinet8465
Two Spindle Brake Drum Disc Lathe Brake Disc Brake Drum Cuttingmachinet8465
Two Spindle Brake Drum Disc Lathe Brake Disc Brake Drum Cuttingmachinet8465
Two Spindle Brake Drum Disc Lathe Brake Disc Brake Drum Cuttingmachinet8465

Two Spindle Brake Drum Disc Lathe Brake Disc Brake Drum Cuttingmachinet8465

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

■ Basic Information
Model NO.
T8465
Specification
1020*1065*1100MM
HS Code
8458190000
Capacity
500 unit/Year
■ Product Display

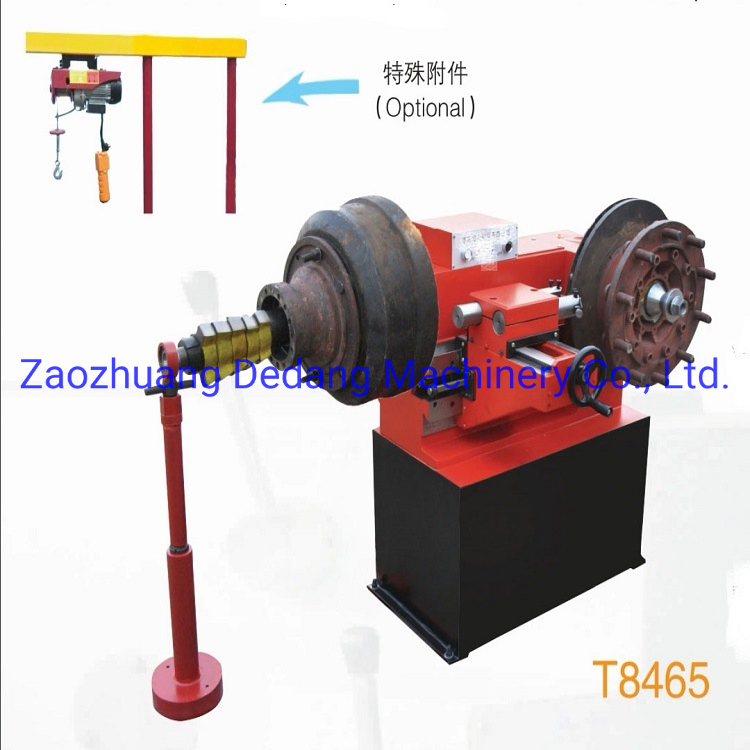

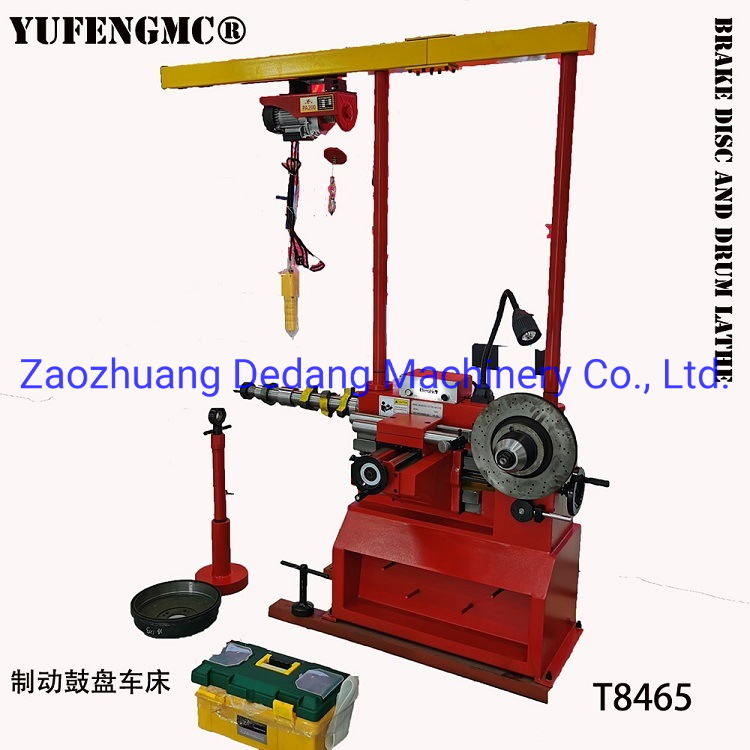

Brake Drum Disc Lathe T8465

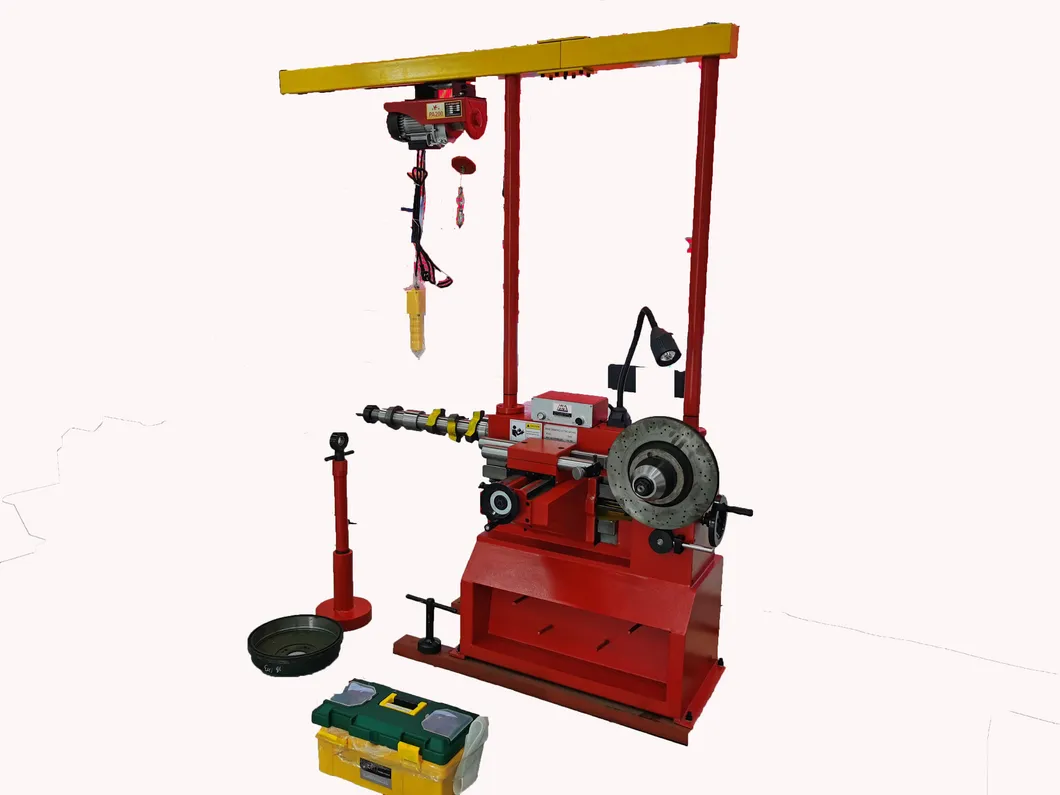

Brake Disc Cutting Machine
Two Spindle Lathe Details

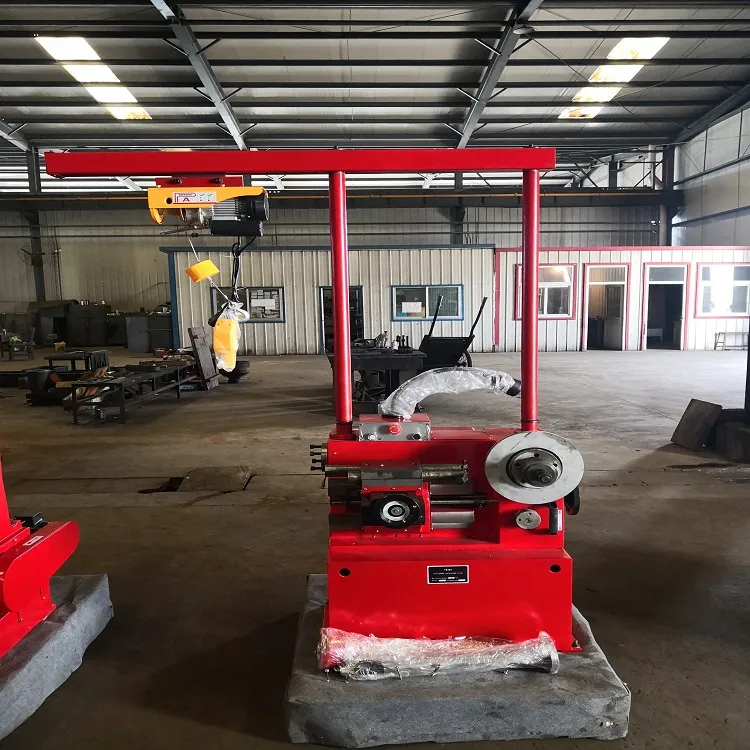

Brake Drum Lathe Operation

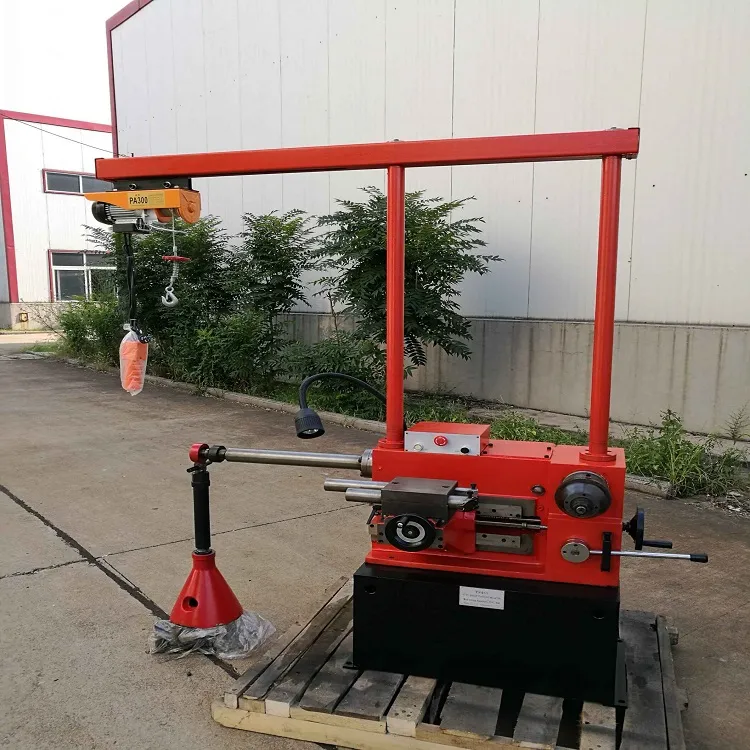

Brake Disc Lathe Components
■ Technical Specifications
BRAKE DRUM AND DISC LATHE T8445/T8445A T8465
DRUM DIA 180-450MM 180-650MM
DISC DIA 102-400MM 102-520MM
CUTTING TRAVEL 190MM 265MM
SPINDLE SPEED 20, 52, 85 RPM 20, 52, 85 RPM
FEED SPEED 0.16MM 0.16MM
MAIN MOTOR 1.1KW 1.1KW
MACH WITH LIFTING UNIT 1100*870*1000MM 1580*1020*1050MM / 1880*1020*1970MM
PACKING SIZE WITH LIFTING UNIT 900*930*1100MM 1020*1065*1100MM / 1420*1065*1100MM
G WEIGHT / N.W 350/290KG 530/470KG
■ Key Features
1
"Replacement adapter" system eliminates the need for traditional bell clips and cones.
2
Continuously variable spindle and cross feed speed set for fast rough and fine finishing.
3
Precision double cutter and fast drum to rotor conversion help improve your service capability.
4
Dc motor designed to meet the requirements of industrial motion control.
5
Positive rake cutter tip angle provides for a one pass finish virtually every time, allowing you to complete your work fast.
■ Frequently Asked Questions
What is the maximum drum diameter the T8465 can process?
The T8465 model can handle a maximum drum diameter of 650mm, which is significantly larger than the T8445 model.
Does this machine support both disc and drum brakes?
Yes, it is a versatile two-spindle lathe designed to process both brake drums and brake discs efficiently.
What are the available spindle speeds?
The machine offers three spindle speeds: 20, 52, and 85 RPM, allowing for different finishing requirements.
What is the advantage of the "Replacement adapter" system?
This system eliminates the need for traditional bell clips and cones, simplifying the setup process and saving time.
What kind of motor does the machine use?
It uses a 1.1KW DC motor specifically designed to meet industrial motion control requirements for stable performance.
Is a one-pass finish possible with this lathe?
Yes, the positive rake cutter tip angle is designed to provide a high-quality finish in virtually a single pass.
